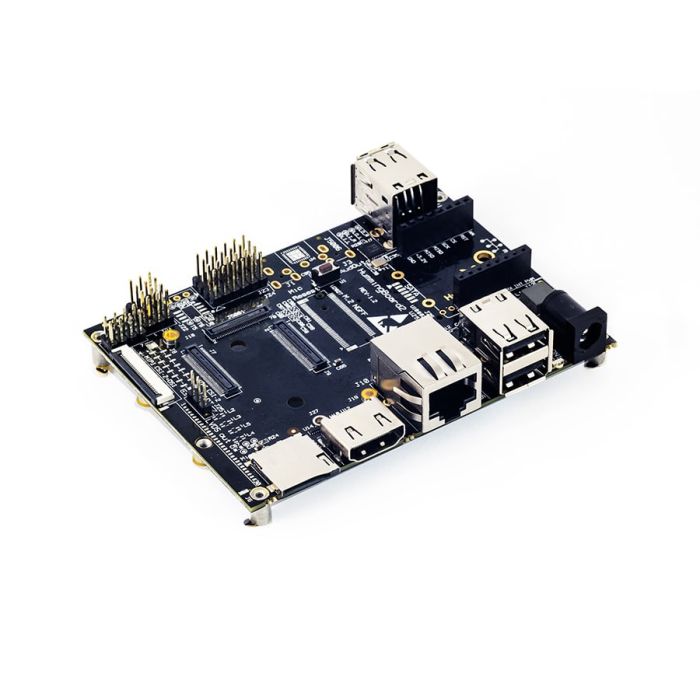

HummingBoard Gate Carrier WIFI/BT IMX6Quad Devolpment Board
SKU
MD-01021
PKR40,800.00
Quantity: 0
HummingBoard Gate Carrier WIFI/BT IMX6Quad Devolpment Board
- Buy 5 for PKR38,760.00 each and save 5%
- Buy 10 for PKR36,720.00 each and save 10%
Categories: Smart Boards, Development Boards
FEATURES:
- Based on NXP’s iMX6 Single to Quad Core.
- Up to 4GB DDR3
- Industrial Design
- Featuring mikroBUS, perfect for quick demo / proof of concept.
SPECIFICATIONS:
- Processor: ARM Cortex-A9, i.MX6Quad
- Speed: 1.2GHz
- Number of Cores: 4
- Expansion Site/Bus: mPCIe
- RAM Capacity/Installed: 4GB/4GB
- Storage Interface: uSD
- Video Outputs: HDMI, MIPI
- Ethernet: 10/100/1000 Mbps (1)
- USB: USB 2.0 (4)
- Digital I/O Lines: 36
- Size / Dimension: 4.02" x 2.72" (102mm x 69mm)
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X HummingBoard Gate Carrier WIFI/BT IMX6Quad Devolpment Board
| Part Number | NA |
|---|---|
| Weight (KG) | 0.045000 |
| Manufacturer | SolidRun LTD |
| Model Number | HB05W-G-000-00-000-0 |
| Voltage (V) | 7~35 |
| Current (A) | NA |
| Power | NA |
| Processor | ARM Cortex-A9, i.MX6Quad |
| Frequency | 1.2GHz |
| Operating System | Linux |
| Temperature Range (Min) | -40°C |
| Bluetooth Interface | No |
| Interface | USB 2.0 (4)/ Ethernet (10/100/1000 Mbps) (1) |
| Size (mm) | 102 X 69 |
