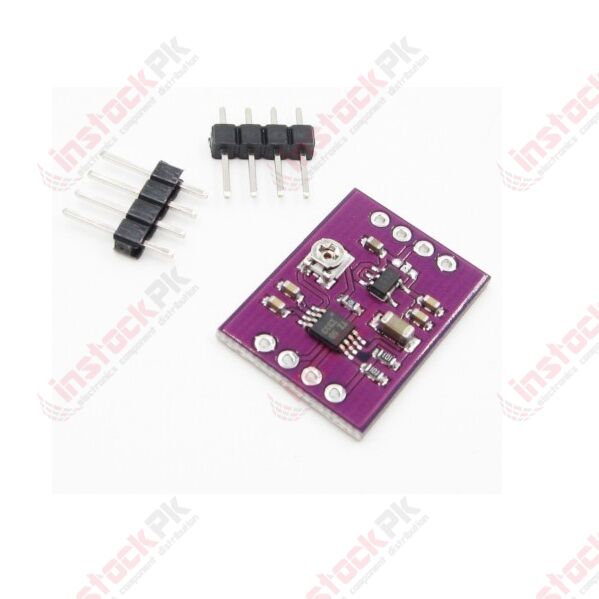

Human Micro Signal Multifunctional Three Op Amp Precision Instrumentation Amplifier CJMCU-333 INA333

Description:

The INA333 is a low-power, precision instrumentation amplifier offering excellent accuracy. The versatile 3-op amp design, small size, and low power make it ideal for a wide range of portable applications. A single external resistor sets any gain from 1 to 1000. The INA333 is designed to use an industry-standard gain equation: G = 1 + (100kΩ/RG). The INA333 provides very low offset voltage (25 μV at 25°C, G ≥ 100), excellent offset voltage drift (0.2 μV/°C, G ≥ 100), and high common-mode rejection (100 dB at 25°C, G ≥ 10). It operates with power supplies as low as 1.8 V (±0.9V), and quiescent current is only 50 μA—ideal for battery-operated systems. Using autocalibration techniques to ensure excellent precision over the extended industrial temperature range, the INA333 also offers exceptionally low noise density (55 nV/√Hz) that extends down to dc. The INA333 is is specified over the TA = –55°C to +210°C temperature range.

Features:

- Low Offset Voltage: 25 µV (Maximum), G ≥ 100

- Low Drift: 0.1 µV/°C, G ≥ 100

- Low Noise: 50 nV/√Hz, G ≥ 100

- High CMRR: 100 dB (Minimum), G ≥ 10

- Low Input Bias Current: 200 pA (Maximum)

- Supply Range: 1.8 V to 5.5 V

- Input Voltage: (V–) +0.1 V to (V+) –0.1 V

- Output Range: (V–) +0.05 V to (V+) –0.05 V

- Low Quiescent Current: 50 µA

- Operating Temperature: –40°C to +125°C

- RFI Filtered Inputs

- 8-Pin VSSOP and 8-Pin WSON Packages
