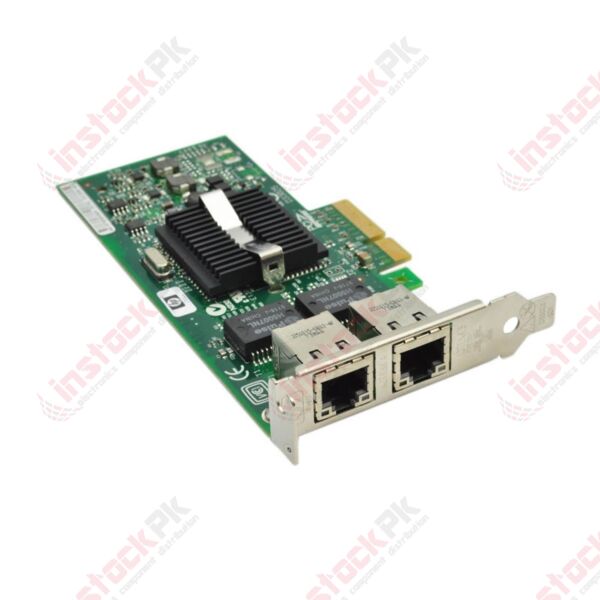

HP Dual Port Ethernet Gigabit Server Adapter Card NC360T PCI 412651-001

The NC360T is a high performance PCI Express (PCIe) dual port, copper, gigabit network solution for ProLiant customers who demand the latest in dual port Ethernet network adapter bandwidth and features. It offers two ports on a single PCI Express adapter, allowing customers to save valuable I/O slots for other uses. It is based upon the high performance Intel 82571EB chipset and offers a 4 lane (x4) PCI Express bus. Unique customer benefits and differentiators are: flexibility to order and install (It has both standard and low profile capability.); and, usable in Ethernet or Fast Ethernet legacy twisted pair environments to preserve legacy infrastructure investments.

FEATURES:

1. Device Type - Network adapter
2. Form Factor - Plug-in card
3. Interface (Bus) Type - PCI Express x4
4. PCI Specification Revision - PCIe 1.0a
5. Bus Voltage - 3.3 V
6. Ports Qty - 2 ports
7. Cabling Type - Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
8. Data Link Protocol - Ethernet, Fast Ethernet, Gigabit Ethernet
9. Data Transfer Rate - 1.06 Gbps
10. Network / Transport Protocol - TCP/IP
11. Processor - 1 x 82571EB - Intel
12. RAM - 92 KB
13. Compliant Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP)
14. System Requirements - Microsoft DOS, Microsoft Windows 2000, Red Hat Linux, SuSe Linux, Novell NetWare 6.x, Caldera OpenUnix 8, SCO OpenServer 5.0.7, Microsoft Windows Server 2003, UnixWare 7.1.3, UnixWare 7.1.4, SunSoft Solaris 10, SCO OpenServer 6, Microsoft Windows Server 2003 x64 Edition

PHYSICAL DIAGRAM:

PACKAGE INCLUDES:

1. 1 X HP Dual Port Ethernet Gigabit Server Adapter Card NC360T PCI
