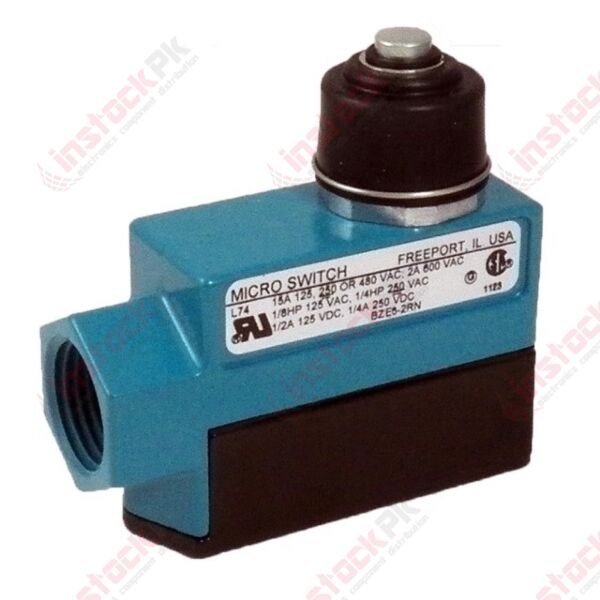

Honeywell: Linear Conduit Limit Switch 1NO/1NC SPDT Top Plunger 1/2" Screw Mount - BZE6-2RN-S

The BZE6-2RN-S Honeywell Limit Switch comes with pre-leaded or connector termination options. This industrial limit switch also has a seal boot on plunger, grounding screw and zinc die-cast housing material. Limit Switches are generally used to control machinery in industrial applications. They function as a safety interlock and can be used to establish or disrupt electrical connections.

The E6 side mount micro switches have a combination insulator/seal cemented inside the bottom enclosure. These BZE6-2RN-S limit switches are used in packaging equipment, special machinery, textile machinery, conveyors, construction machinery and equipment, printing trades machinery, overhead cranes and hoists.

• Side mount
• Momentary or maintained contact
• Enclosed switch
• Grounding screw
• Pre-leaded or connector termination options
• Zinc Die-Cast housing NEMA 1
• Seal boot on plunger
• High capacity (22 amp) available
• Temperature range -32 °C to +71 °C [ -25 °F to +160 °F]
• NEMA 1, 3, 4 /IP66
• UL Recognized, file #E12252
• CSA Certified, file #LR41372

• Packaging equipment
• Special machinery
• Textile machinery
• Conveyors
• Construction machinery and equipment
• Printing trades machinery
• Overhead cranes and hoists
