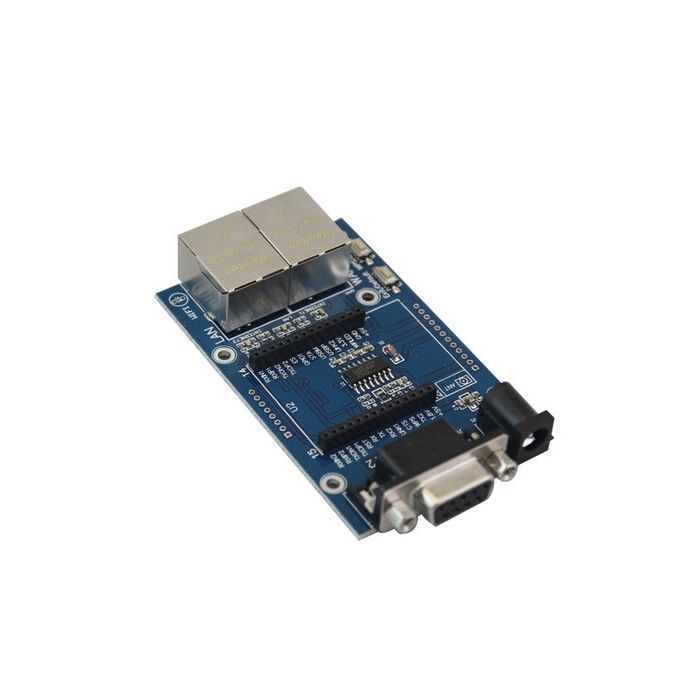

HLK-RM04 WIFI Expansion Board
SKU
MD-00033
PKR950.00
Quantity: 0
A serial port turn WIFI module, a serial port turn Ethernet module, Ethernet switch WIFI multi-function WIFI module, a serial port server module, make it easy for your serial port device connected to the Internet, transparent two-way data transmission, to ensure the highest limit of ease of use and compatibility.
Category: Wifi & Bluetooth Module
FEATURES:
In support of the Wi-Fi module HLK-RM04 there's also a test board that has implemented all the connections that it has:
- The Serial (RS-232 compliant) for connect the module to the PC.
- Two network ports for LAN with RJ-45 connector.
- wps/wds button.
- Transmission mode button (transparent/AT command).
- Power connector.
MODE OF OPERATIONS:
- Default mode
- Serial to Ethernet
- Serial to WI-FI Client
- Serial to WI-FI AP
SPECIFICATIONS:
- Voltage : 5v
- Model : Hlk-rm04
- Appalication : Computer
- Temperature : 25 ~ 75C.
- Size : 81mm x 51mm
PACKAGE INCLUDES:
- 1 X HLK-RM04 WIFI Expansion Board
| Part Number | NA |
|---|---|
| Manufacturer | Made in China |
| Product Availability | In Stock |
| Weight (KG) | 0.036500 |
