Hall Effect DC Current Transformer module D-C1T (100A)

SKU
MD-00513
PKR3,000.00
Quantity: 0
Hall Effect DC Current Transformer module D-C1T (100A)
  • Buy 5 for PKR2,850.00 each and save 5%
  • Buy 20 for PKR2,760.00 each and save 8%
  • Buy 50 for PKR2,700.00 each and save 10%

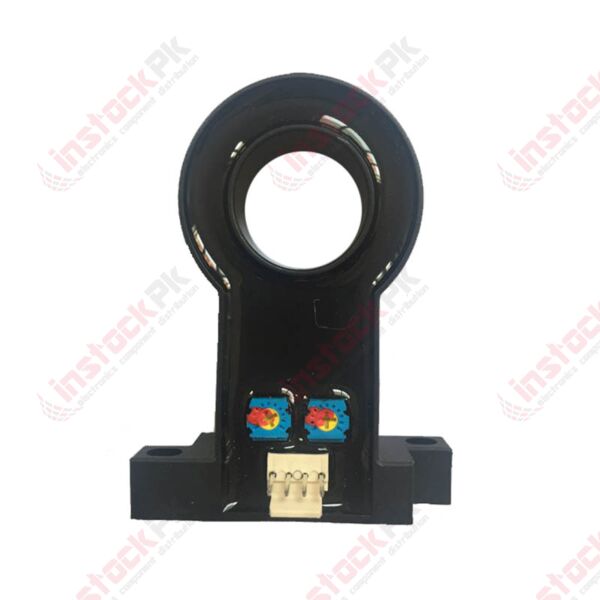

D-C1T hall effect current Sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC currents.

SPECIFICATIONS:

Type

D-C1T-100A

       Unit

Rated current(Ipn DC)

100

A

Measure range(Ip DC)

0-150

A

Rated output(DC)

Ip=±Ipn DC 4

V

Supply voltage

+12V,+15V,+24V

V

Power Consumption

<25

mA

Offset voltage

Ip=0 ±20

mV

Magnetic offset

Ip=±Ipn-0 ±20

mV

Offset drift

-40~+85ºC ≤±1

mV/ºC

Output drift

-40~+85ºC ≤±1

mV/ºC

Linearity

Ip=0-±Ipn ≤1

%FS

Response time

50A/μS, 10%-90% ≤7

μs

Galvanic isolation

50HZ,AC,1min 5

KV

HOW TO USE:

  1. When the current will be measured goes through a Sensor, the voltage will be measured at the output end.(Note: The false wiring may result in the damage of the Sensor).
  2. The output amplitude of the Sensor can be adjusted according to user's requirements.

APPLICATIONS:

  1. Variable speed drives
  2. Welding machine
  3. Battery supplied applications
  4. Uninterruptible Power Supplies (UPS)
  5. Electrochemical

PACKAGE INCLUDES:

  1. 1 X Hall Effect DC Current Transformer module D-C1T (100A)
Weight (KG) 0.020000
Manufacturer Made in China
Voltage (Min) 12v
Voltage (Max) 24V
Output Voltage NA
Power <25mA
Input Current NA
Current (A) 100
Turn Ratio NA
Frequency NA
Temperature Range (Min) -40°C
Baud Rate NA
