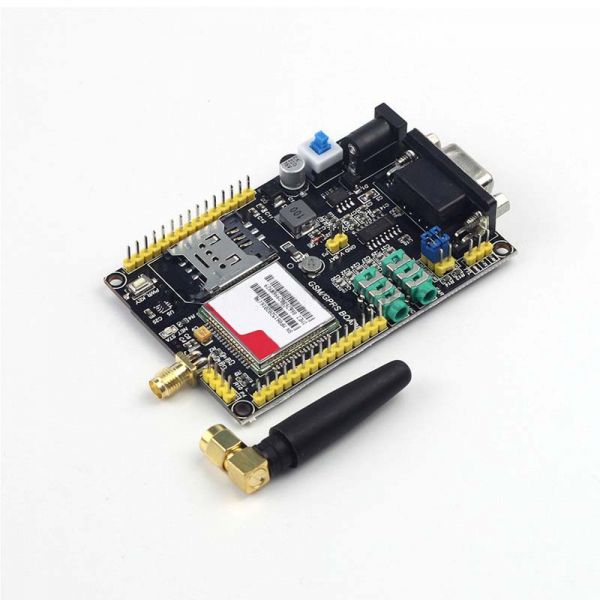

GSM/GPRS Development Board SIM800 For Arduino/STM32

PTA Registration (if required) is the responsibility of customer.

SIM800 is a quad-band GSM/GPRS module that works on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz. SIM800 features GPRS multi-slot class 12/ class 10 (optional) and supports the GPRS coding schemes CS-1, CS-2, CS-3 and CS-4.

FEATURES:

1. SIM800 module is a simcom's GSM / GPRS module. The development board supports mobile Unicom 2g / 3g / 4g card.
2.  Support 3.3V / 5V TTL level control, convenience and variety of commonly used microcontrollers, such ARDUINO / 51 / STM32 and other communications
3.  Modules listed separately TX / RX / GND, and easy to use.
4.  It contain standard serial interface, easy to use with PC or debugging
5.  with headphone and microphone interface, easy to test GSM voice calls.
6.  SIM card with a chip static protection, static electricity generated when the SIM card plug for protection
7.  All pins are available SIM800 go out, so you can develop applications for a variety of SIM800
8.  RTC with battery backup
9.  With NET_STA indicator for easy viewing of the current status of SIM800.

SPECIFICATIONS:

1. GPRS class 12: max. 85.6 kbps (downlink/uplink)
2. PBCCH support
3. Coding schemes CS 1, 2, 3, 4
4. PPP-stack
5. CSD up to 14.4 kbps
6. USSD
7. Non transparent mode
8. Specifications for SMS via GSM/GPRS
9. Point to point MO and MT
10. SMS cell broadcast
11. Text and PDU mode

RELATED DOCUMENTS:

1. GSM/GPRS Development Board SIM800 Datasheet.

PACKAGE INCLUDES:

1. 1 X GSM/GPRS Development Board SIM800 For Arduino/STM32
