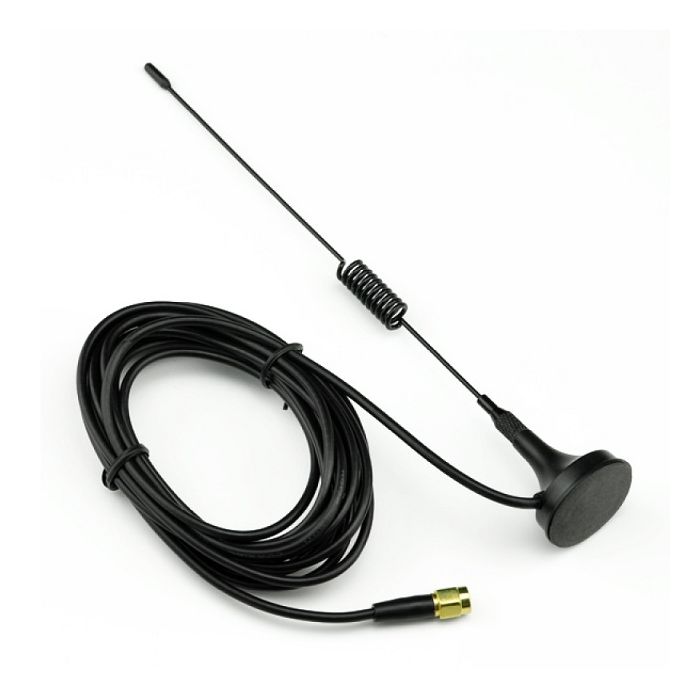

GSM 3DBI Magnetic Mount Spring Antenna with SMA Connector -AN-88-D

SKU
AN-02002
PKR950.00
Quantity: 0

GSM 3DBI Magnetic Mount Spring  antenna is designed for GSM GPRS 900/1800mhz system of communication terminal system. The antenna is structure compact and convenient for easy installation. Commonly used in GSM repeater ,GSM sensor, GSM module & GSM modems.

GSM 3DBI Magnetic Mount Spring antenna Electrical Specifications:-



    • Frequency range(MHz) 900-1800-1900
    • Bandwidth (MHz) 70/170
    • Gain (dBi) 3
    • VSWR ≤2.0
    • Input Impedance(Ω) 50
    • Polarization Vertical
    • Maximum input power(W) 50
  • Input connector type SMA Male or Requested
GSM 3DBI Magnetic Mount Spring antenna Mechanical Specifications:-
  • Dimensions(mm) 30×200
  • Antenna weight(g) 50
  • Mounting way Magnetic adsorption
  • Operating temperature(°c) -40~60
Part Number AN-88-D
Weight (KG) 0.020000
Packing Unit 1 Piece
Product Availability In Stock
