GPIO Pin Header Expension Cascade Expander for Raspberry Pi 4/3/2 with Quick Couplers

SKU
MD-02011
PKR1,350.00
Quantity: 0

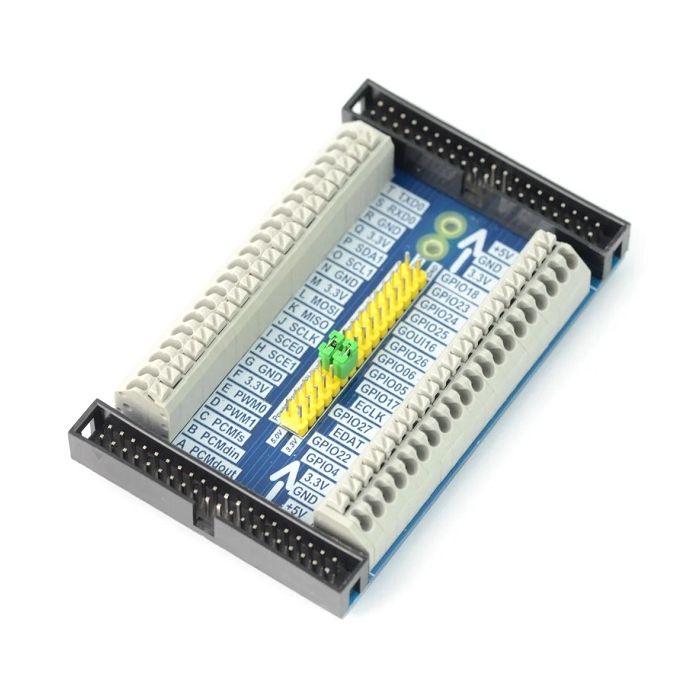

An expansion board that allows you to easily connect the modules to the GPIO pins on a Raspberry Pi. Board is combined with minicomputer via 40-strip ribbon . It has goldpin connectors and quick couplings with a button. The boards can be connected with each other in a cascade.

Description

An expansion board that allows you to easily connect the modules to the GPIO pins on a Raspberry Pi. Board is combined with minicomputer via 40-strip ribbon. It has goldpin connectors (pitch of 2.54 mm) and quick couplings with a button. The boards can be connected with each other in a cascade.





The device does not increase the number of GPIO pins of the Raspberry Pi, it only multiplies built-in contacts.



Pins

Board has pins in the formof goldpin strips and quick couplings with button. Thanks to this, the connection of additional modules becomes much easier. Yellow goldpin strip has power connectors of 3.3 V and 5 V, and ground GND.



Part Number NA
Weight (KG) 0.010000
Packing Unit 1 Piece
Product Availability In Stock
