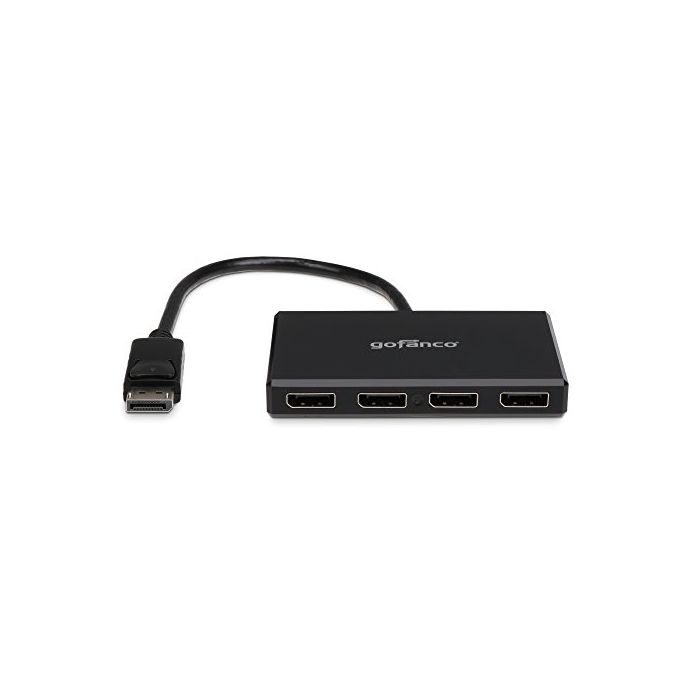

gofanco: DisplayPort 1.2 4-Port MST Hub/Splitter – Black

• ENABLE 4 MORE EXTERNAL DISPLAYS - Connect four DisplayPort enabled displays to your laptop, Ultrabook, or PC through a single DisplayPort 1.2 output; work as a splitter with the same content on each monitor, extended mode with 4 independent monitors, or expand mode joining multiple monitors together as one display

• EYEFINITY SUPPORT FOR GAMING AND DIGITAL SIGNAGE - Active converter ensures compatibility with AMD Eyefinity technology to support multi-screen SLS gaming and digital signage applications. For details, search the web for "How to configure multiple monitors using an AMD Eyefinity Graphics Adapter?"

• VERY IMPORTANT - The total bandwidth of 21.6Gbps, when connected to a DisplayPort 1.2 port, is shared among all attached monitors. If the bandwidth is used up by the first few monitors, the remaining monitors will be disabled. Please make sure your setup does NOT exceed the total bandwidth. See average resolution bandwidth allocation below.

• Total bandwidth 21.6Gbps (100%): - 3840x2160 @30Hz (40%); - 2560x1600 @60Hz (38%); - 2560x1440 @60Hz (35%); - 1920x1200 @60Hz (30%); - 1920x1080 @60Hz (22%). * Note: Make sure the total combined resolution bandwidth between all displays does NOT exceed 100%

• USB BUS-POWERED - and no driver installation. FCC, CE & RoHS compliant

gofanco DisplayPort 1.2 4-Port MST Hub/Splitter allows you to connect four DisplayPort monitors to your DisplayPort enabled laptop, Ultrabook, or PC. Configure these added monitors anyway you want; work as a splitter with the same content on each monitor, extended mode with 4 independent monitors, or expand mode joining multiple monitors together as one display.

Eyefinity compatible for gaming and digital signage: Active converter ensures compatibility with AMD Eyefinity technology to support multi-screen SLS gaming and digital signage applications.

Important Note:
The total bandwidth of 21.6Gbps, when connected to a DisplayPort 1.2 port, is shared among all attached monitors. If the bandwidth is used up by the first few monitors, the remaining monitors will be disabled. Please make sure the total combined resolution bandwidth between all displays does NOT exceed 100%. See average resolution bandwidth allocation below.
- 3840x2160 @30Hz (40%)
- 2560x1600 @60Hz (38%)
- 2560x1440 @60Hz (35%)
- 1920x1200 @60Hz (30%)
- 1920x1080 @60Hz (22%)

* If the source DisplayPort output doesn’t support DP 1.2, the MST function is disabled and this hub becomes a Splitter, mirroring your vide source across all displays

Specifications
- Country of origin: China
- Regulatory approvals: FCC, CE, RoHS

Compatible Devices
- PCs with an available DisplayPort (DisplayPort 1.2 recommended)
- Windows 10 / 8.1 & 8 / 7

What's in the Package
- DisplayPort 1.2 4-Port MST Hub/Splitter - Black
- Micro-USB power cable
- User’s guide

Warranty & Support
- Limited One-Year Warranty and Lifetime Product Support
