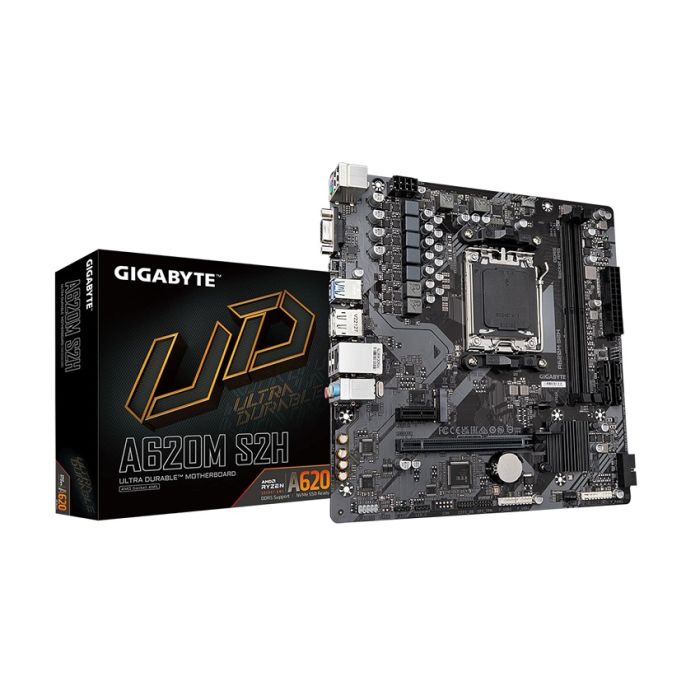

GIGABYTE: AMD AM5 LGA1718 Micro-ATX Motherboard - A620M S2H
SKU
MD-02203
PKR34,900.00
Quantity: 3
GIGABYTE A620M S2H (AM5/ LGA 1718/ AMD/ A620/ Micro ATX/ 5-Year Warranty/ DDR5/ Single M.2/ PCIe 4.0/ USB 3.2 Gen1/ Realtek 1GbE LAN/Q-Flash Plus/PCIe EZ-Latch/Motherboard)
Category: Motherboard
The GIGABYTE A620M S2H AMD AM5 Micro-ATX Motherboard is designed to support AMD Ryzen 7000 Series Processors through its AMD Socket AM5. Unleash unparalleled performance with its advanced 5+2+2 Phases Digital VRM Solution. Embrace the speed of Dual Channel DDR5 with 2*SMD DIMMs, offering support for both AMD EXPO and Intel XMP Memory Modules. Benefit from SuperSpeed Storage with its PCIe 4.0 x4 M.2 Connector. The EZ-Latch PCIe x16 Slot features a Quick Release Design for seamless upgrades. Connect swiftly with Fast Networks through GbE LAN. Expand your possibilities with Extended Connectivity options including DP, HDMI, and D-Sub ports. Keep your system cool and quiet with Smart Fan 6, equipped with multiple temperature sensors and Hybrid Fan Headers featuring FAN STOP technology. The Q-Flash Plus functionality allows BIOS updates without the need to install the CPU, memory, or graphics card.
Specification
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000 / 7000 Series Processors |
|
| Chipset | AMD A620 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 23.0cm x 22.5cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM | |
| Supported Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 96 GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port (s) | 1 x DisplayPort | |
| D-Sub (s) | 1 x D-Sub port | |
| USB (s) | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Part Number | A620M S2H |
|---|---|
| Weight (KG) | 0.800000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
