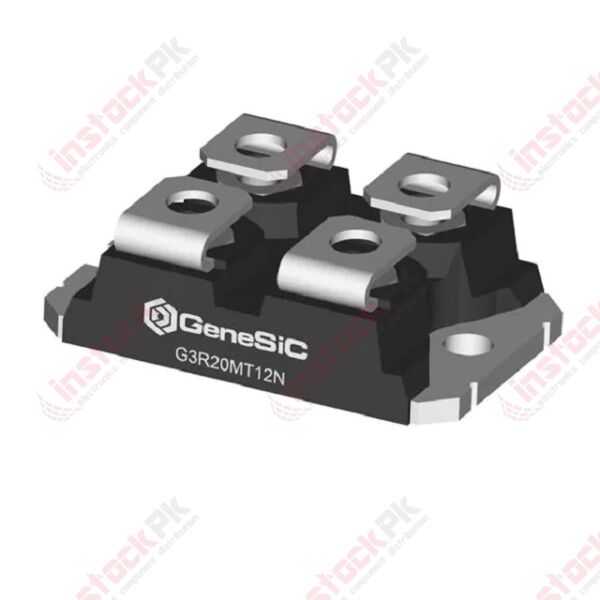

Genesic: Silicon Carbide MOSFET, Single, N Channel, 105 A, 1.2 kV, 0.02 ohm, SOT-227 - G3R20MT12N
PKR 21,600.00
SKU
MD-01932
Product Attributes
|
Product Status
|
Active
|
|
|
FET Type
|
N-Channel
|
|
|
Technology
|
SiCFET (Silicon Carbide)
|
|
|
Drain to Source Voltage (Vdss)
|
1200 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
105A (Tc)
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
15V
|
|
|
Rds On (Max) @ Id, Vgs
|
24mOhm @ 60A, 15V
|
|
|
Vgs(th) (Max) @ Id
|
2.69V @ 15mA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
219 nC @ 15 V
|
|
|
Vgs (Max)
|
+20V, -10V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
5873 pF @ 800 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
365W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
|
Mounting Type
|
Chassis Mount
|
|
|
Supplier Device Package
|
SOT-227
|
|
|
Package / Case
|
SOT-227-4, miniBLOC
|
|
|
Base Product Number
|
G3R20
|
| Part Number | G3R20MT12N |
|---|---|
| Weight (KG) | 0.050000 |
| Packing Unit | 1 Piece |
| Product Availability | Available on Demand |
