FuriousFPV: Long Range 2.4GHz Video Communication Kit With Transmitter/Receiver/Monitor - (Refurbished)

SKU
MD-02260
PKR35,000.00
Quantity: 1

Slightly used in 100% working Condition.

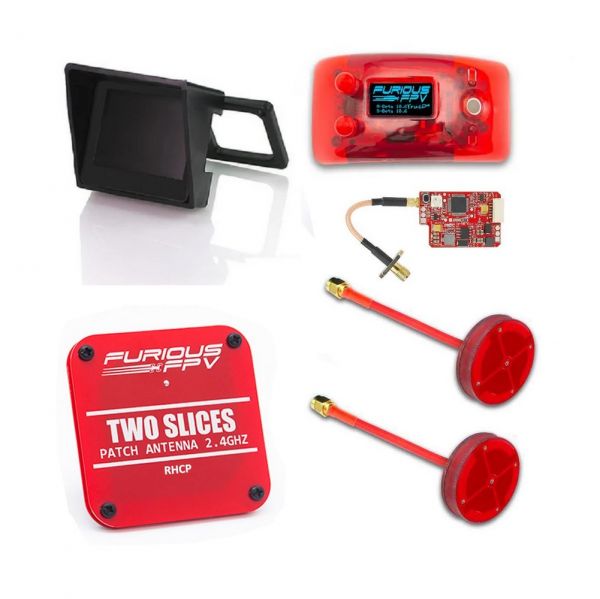

Package Includes:

  • 2.4GHz Long Range Video Transmitter
  • True-D X Receiver Module 5.8GHz
  • Furious FPV Mini Monitor

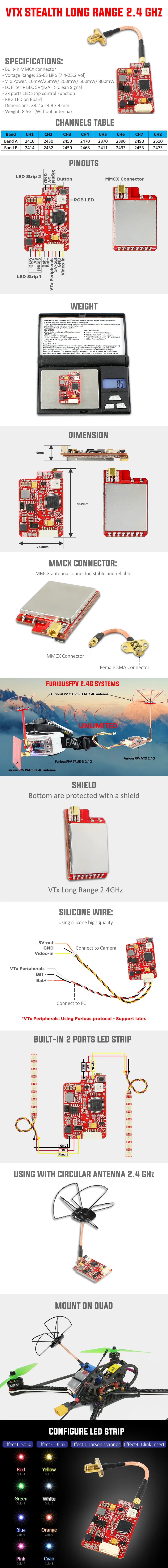

2.4GHz Long Range Video Transmitter

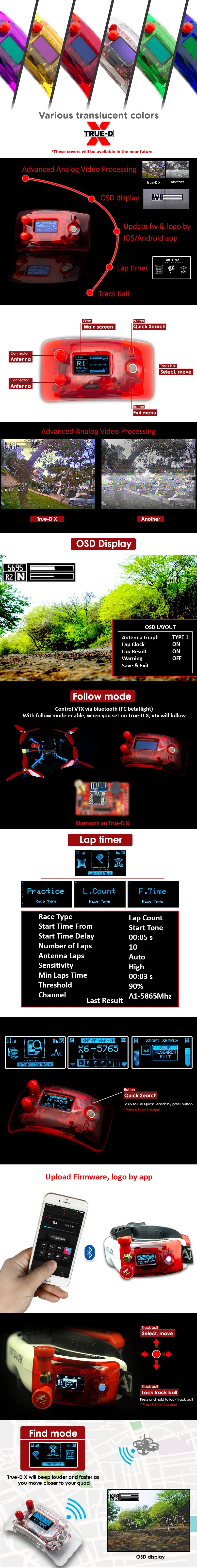

True-D X Receiver Module 5.8GHz

Push your FPV boundaries far beyond the horizons with the all new long range Furious FPV 2.4GHz VTx - the ultimate long range FPV solution.

Building upon the massive success of previous 5.8GHz systems, Furious FPV steps into the realm of 2.4GHz, offering a multi power VTx with a selectable race ready 10mW to massive 800mW output power for extreme range FPV flight that only 2.4GHz can provide.

Offering ultra clear video reception with excellent signal penetration, the 2.4GHz VTx provides a host of capabilities with (16) channels of 2.4GHz frequencies to choose from. Further this with a light weight, compact layout that incorporates a metal shield for video clarity protection, the Furious FPV 2.4GHz VTx offers a perfect FPV solution for pilots in search of long range flight.

Featuring a wide voltage input of 7.4V - 25.2V, built-in BEC 5V@2A with LC filter with an RBG LED board to provide channel & power output feedback, the Furious 2.4GHz VTx is a multi-channel power house that offers maximum flexibility when it comes to your FPV application.

Designed for long range pilots in mind, the Furious FPV 2.4GHz VTx is the ultimate extreme range VTx, offering immense capability and functionality in a light weight, compact layout. A perfect fit for a myriad of FPV machines, the 2.4GHz VTx is ready and waiting to push your FPV range to the horizons & beyond.

Specifications:

  • Transmission Frequency: 2.4GHz
  • Selectable Output Power: 10mW/25mW/ 200mW/ 500mW/ 800mW
  • Available Channels: 16
  • Input Voltage: 7.4V - 25.2V (2S - 6S LiPo)
  • BEC: 5V@2A + LC Filter
  • LED Ports: (2) LED Ports for LED Strip Functionality
  • On Board Display: RBG (Red/ Blue/ Green) LED
  • Non support audio
  • RF Connector: MMCX
  • Dimensions: 38.2mm x 24.8mm x 9mm (LxWxH)
  • Weight: 8.5g (antenna excluded)
  • Wire & Connector: High Quality Silicon & GH Connector
  • Shield: Easy to Mount Metal Protection Shield
  • VTx Control: Uses Furious FPV Protocol to Control via FC (available via latter firmware update)
The brand new FuriousFPV Video Module. There is an app from your phone IOS & Android to update firmware change your logo on your screen with bluetooth capabilities. It also has advanced analog video processing, OSD Display, All New Follow Mode, A Lap Timer, Quick Search, and a Quad Finder!

A successor to the Furious True-D Receiver Module. It includes many awesome features for your drone like Bluetooth, advanced analog video processing, OSD Display, Follow Mode, Lap Timer, Quick Search, and a Quad Finder mode! Furious has been making FPV racing drone parts for many years now, and the True D-X is another excellent part of their FPV arsenal.

This is the red version.

Features & Specifications:

  •  Compatibility: All Dominator goggles, including V1, V2, V3, SE, HD1, HD2, HD3, HDO. (except Attitude V3, V4. We’ll release another version for Attitude)
  • Auxiliary Power: Included board + flat flex cable for goggles that cannot provide enough power (Dom HDO do not require this)
  •  Sensitivity: Better than -96dBm
  •  Power: 5V @ ~450mA
  •  Modes: TRUE X, TRUE Diversity

After 3 years of developing the well-trusted True-D diversity module, FuriousFPV steps up the game in 2019 with an all new True-D X module with completely new hardware and the new antenna switching technology. It opens up opportunities to add more features to the True-D X where the existing True-D has reached the limit of hardware capability. More details are coming soon...

Features:

  • On Screen Display
  • New ergonomic track ball to interact with user interface
  • Bluetooth controls so you can use your phone and not have to take your goggles off your head. Firmware updates can also be done via bluetooth.
  • Improved analog video processing
  • Integrated Lap Timer so you can keep track of your laps and lap times all from the OSD.


Package Includes:

Transmitter

Receiver

Monitor

1x Stealth 2.4GHz Long Range Video Transmitter
1x Antenna Pigtail 90 Degrees MMCX to SMA
1x Two Slice Patch Antenna 2.4Ghz
1x Wire

1x True-D X
1x Replacement trackball
1x Adapter board
2x Antenna

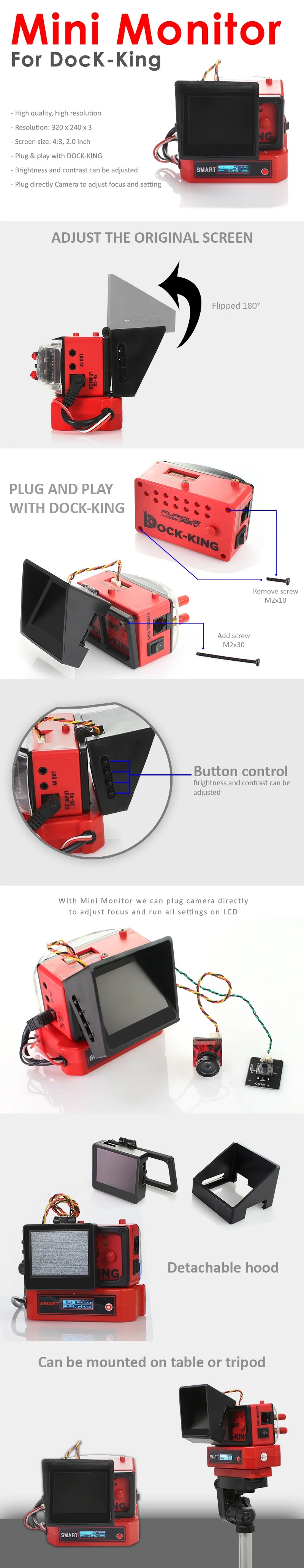

1x Furious FPV Mini Monitor
1x Monitor Hood
1x Cable
1x Screw Set
Part Number NA
Weight (KG) 0.100000
Packing Unit 1 Piece
Product Availability In Stock
