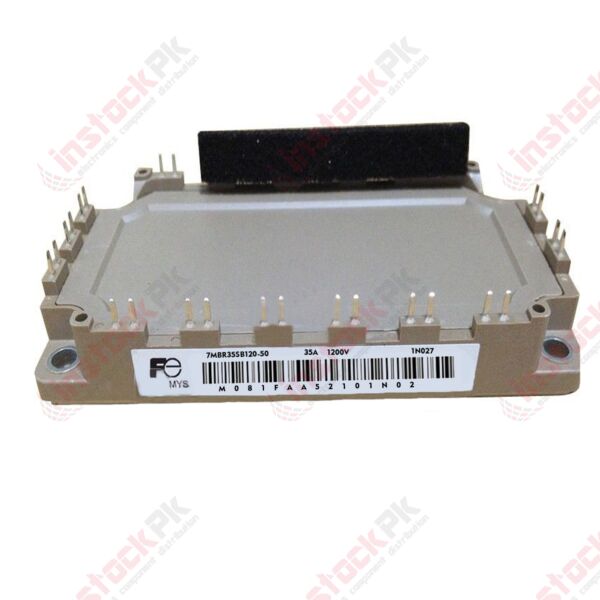

FUJI 7MBR35SB120-50 IGBT(35A1200V) Power Module
PKR 9,100.00
SKU
MD-00204
- Buy 3 for PKR 8,645.00 each and save 5%
- Buy 10 for PKR 8,372.00 each and save 8%
Low loss and soft switching by using the third generation IGBT chips.
Realization of high reliability, pursing higher performance of the IGBT by means of the protection by directly detecting the IGBT chips temperature.
FEATURES:
- Low loss and soft switching by using the third generation IGBT chips;
- Realization of high reliability, pursing higher performance of the IGBT by means of the protection by directly detecting the IGBT chips temperature.
- Realization of high reliability and high cost performance by means of integrating all control circuits into the IC chips.
SPECIFICATIONS:
- VCES: 1200V;
- IC: 50A;
- PC: 240W;
- VCES: 240W;
- VCES: 1200V;
- IC: 15A;
- PC: 80W.
APPLICATIONS:
- Inverter for motor drive
- AC and DC servo drive amplifier
- Uninterruptible power supply
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X FUJI 7MBR35SB120-50 IGBT Power Module
| Weight (KG) | 0.100000 |
|---|---|
| Operating System | NA |
| Structure | NA |
