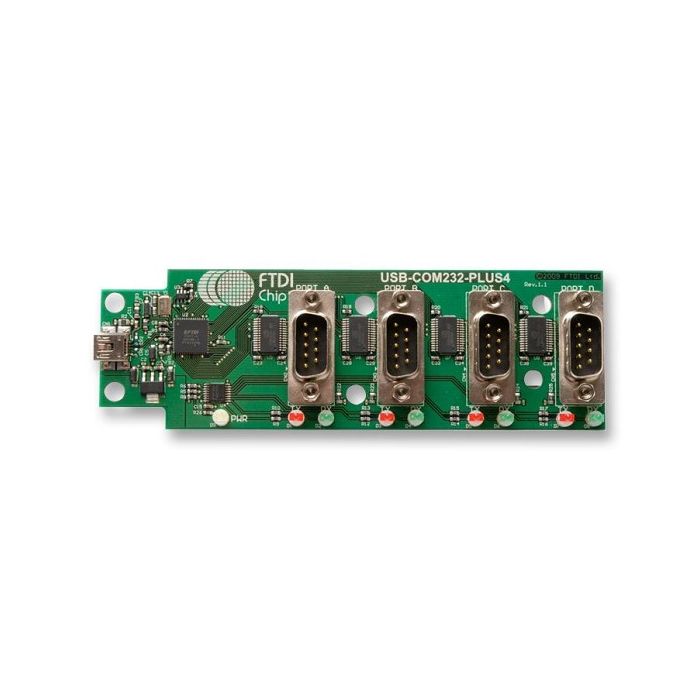

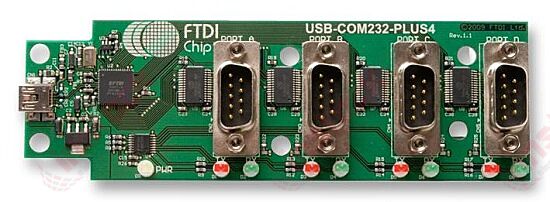

FTDI: USB Hi-Speed to RS232 Serial Converter Assembly with 4 DB9 Ports, uses FT4232H - USB-COM232-PLUS4

SKU
MD-01716
PKR29,200.00
Quantity: 0

Quad channel USB to RS232 converter module.

  • Converts a USB port to 4 independently controllable RS232 serial ports.
  • Designed with FTDI’s FT4232H Hi-Speed USB device the module can enable connecting legacy RS232 peripherals to your PC USB port at data rates up to 1Mbps.
  • The module is powered from the host USB port.
  • All modem control lines are provided TXD, RXD, RTS, CTS, DCD, DTR and DSD.
  • Pin 9 of the DE-9P connectors is a RI# pin for remotely waking up a sleeping host.
  • Indicator LEDs are included to show data transfer and power status
  • The product works with the royalty free FTDI drivers for Windows, MAC OSX, Linux, Android.
  • The USB-COM232-PLUS4 is fully RoHS compliant and is CE and FCC approved.
  • Operating temperature range -40oC to +85oC.



Specifications:

Quad channel USB to RS232 converter module.

  • Data Rates: 3MBaud
  • USB Speed: Full Speed (12Mbps)
  • Interfaces: UART
  • USB Connector: Mini B
  • Packages: N/A
  • Channels: 4
  • I/O Connector: Four Male DE-9P Connectors
  • I/O Voltage: RS232
  • USB Class: FTDI Drivers
  • Virtual Com Port: Yes
Part Number USB-COM232-PLUS4
Manufacturer FTDI Chip
Weight (KG) 0.010000
Product Availability Available on Demand
