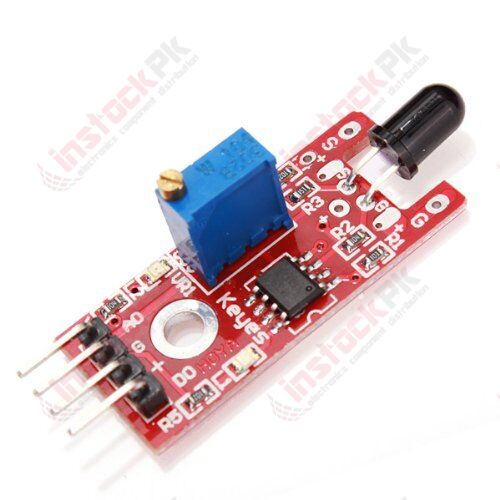

Flame Sensor Module (KY-026)
SKU
MD-00230
PKR220.00
Available Quantity: 8
This module is sensitive to the flame, but also can detect ordinary light. Usually used as a flame alarm. On board, digital output interface can be directly connected with the microcontroller IO.
- Buy 5 for PKR210.00 each and save 5%
- Buy 20 for PKR200.00 each and save 9%
Categories: Smart Boards, Sensors, Sensor Modules, Others
FEATURES:
- Sensitive to flame spectrum
- Used wide range voltage comparator IC LM393
- Adjustable sensitivity
- Signal output indicator
- Sensor for flame wavelengths between 760 nm to 1100 nm infrared.
- 60 degree detection sensor
- AO: analog output, real-time output voltage signal on the thermal resistance;
- DO: when the temperature reaches a certain threshold, the output high and low signal threshold adjustable via potentiometer;
HOW TO USED:
In the case of working with a MCU:
- VCC 3.3V ~ 5.5V
- GND power supply ground
- AOUT MCU.IO (analog output)
- DOUT MCU.IO (digital output)
APPLICATIONS:
- Fire detection
- Fire fighting robot
- Fire alarm
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X -026)
| Part Number | NA |
|---|---|
| Weight (KG) | 0.003000 |
| Manufacturer | Made in China |
| Voltage (Min) | 3.3V |
| Voltage (Max) | 5.5V |
| Output Voltage | NA |
| Power | NA |
| Current (A) | NA |
| Frequency | NA |
| Load Cell (kg) | NA |
| Output Type | Digital and Analog |
| Range | 760nm ~ 1100nm |
| Temperature Range (Min) | -25°C |
| Operating System | NA |
| Resistance Value (Ohm) | NA |
| Baud Rate | NA |
| Interface | NA |
| Num of Pin's | 4 |
| Diameter | NA |
| Size (mm) | 2.92cm X 1.2cm |
