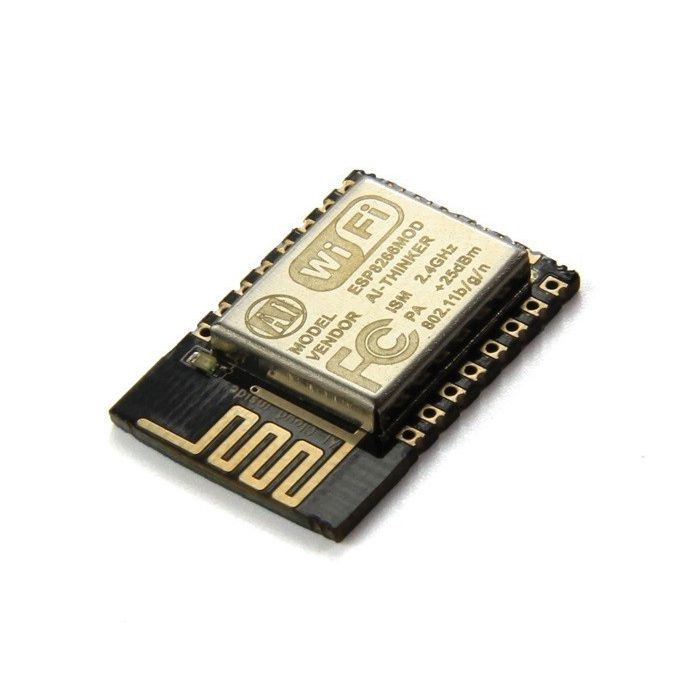

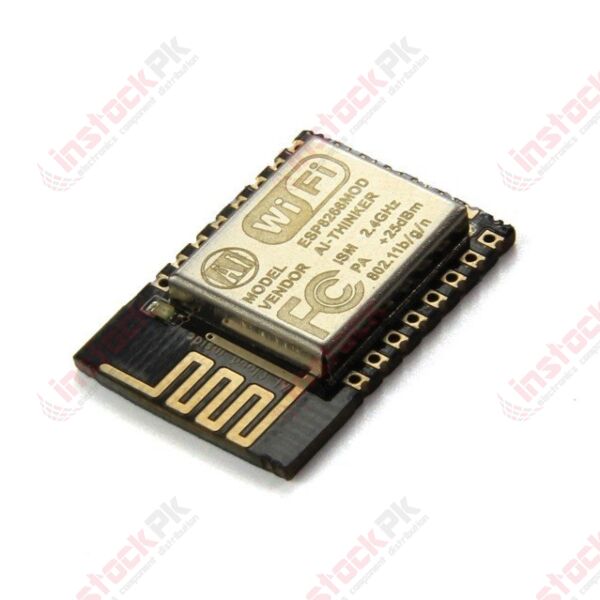

ESP8266 Serial WIFI ESP-12E Wireless Module

ESP8266-12E is the enhanced version, in comparison with ESP8266-12. It has the perfect the peripheral circuit, and can enhance the impedance matching. The output signal is better, both stability and anti-interference ability, has been greatly promoted. For the user for the choice of ESP-12, it doesn't matter. The enhanced version ESP8266-12E is fully compatible with the firmware of ESP-12. It has the additional six pins with IO and SPI ports on the basis of the ESP-12, then develop more convenient, more widely. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.

FEATURES:

1.     SDIO 2.0, SPI, UART
2.     32-pin QFN package
3.     Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
4.     Integrated RISC processor, on-chip memory and external memory interfaces
5.     Integrated MAC/baseband processors
6.     Quality of Service management
7.     I2S interface for high fidelity audio applications
8.     On-chip low-dropout linear regulators for all internal supplies
9.     Proprietary spurious-free clock generation architecture
10.     Integrated WEP, TKIP, AES, and WAPI engines

SPECIFICATIONS:

1.     802.11 b/g/n
2.     Wi-Fi Direct (P2P), soft-AP
3.     Integrated TCP/IP protocol stack
4.     Integrated TR switch, balun, LNA, power amplifier and matching network
5.     Integrated PLLs, regulators, DCXO and power management units
6.     +19.5dBm output power in 802.11b mode
7.     Power down leakage current of <10uA
8.     Integrated low power 32-bit CPU could be used as application processor
9.     SDIO 1.1/2.0, SPI, UART
10.     STBC, 1×1 MIMO, 2×1 MIMO
11.     A-MPDU & A-MSDU aggregation & 0.4ms guard interval
12.     Wake up and transmit packets in < 2ms
13.     Standby power consumption of < 1.0mW (DTIM3)

PIN CONFIGURATIONS:

RELATED DOCUMENTS:

1. ESP8266 Instruction AT Commands
2. ESP8266 Tutorials
3. ESP8266 Forum

PACKAGE INCLUDES:

1. 1 X ESP8266 Serial WIFI ESP-12E Wireless Module
