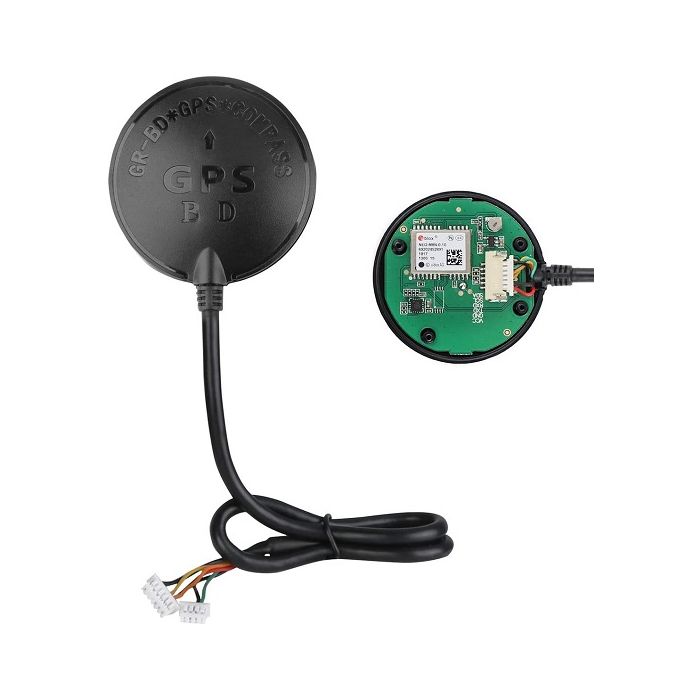

GPS Module (GPS Neo-M8N + compass) with Pixhawk Navigation Module

Specifications:

The product operation guide is obtained in roduct guides and documents. This GPS module will not search for signals when the weather is bad, and it will not search for stars indoors. Please make sure the GPS module is in the open position when using

Main chip: U-B-LOX M8030 KT， Built-in TCXO, which maintain good consistency in the temperature of -40 ℃ ~ +85 ℃; Tracking channels: 72

Three in one Function: Support GPS BDS dual-mode positioning, plus compass chip! Let you realize the desire of one module can be used in many ways

Wide range of use: for APM flight control, PIX flight control, PX4 flight control; The outlet terminal is directly compatible with the APM serial port and I2C port. Plug and play other flight controllers are also available, such as MWC flight controller

Positioning; Auto-positioning: 2.5m [in average]; Auxiliary positioning: 2m [average], with SBAS assistance; Drift: <0.02m / s; Timing accuracy: 60ns; Reference coordinate system: WGS-84; Maximum altitude: 50000 meters [Please pay attention to atmospheric; Temperature during high-altitude flight, and please open the flight mode]; Maximum speed: 500m / s; Acceleration: <4g

Features:

• Main chip: U-BLOX M8030 KT
  Built-in TCXO, which maintain good consistency in the temperature of -40 ℃ ~ +85 ℃.

Receiving frequency:

GPS L1 C/A: The antenna built-in high-quality ESD protection [TVS tube] to ensure ESD keep 8KV above [Air discharge].
SBAS L1C/A: It’s easy to adjust the baud rate, the default is 9600bps, and it supports command adjustment and internal adjustment.
QZSS L1C / A: Support wide area differential GPS enhanced system in default. [S129, S137…. Wide area enhanced satellite].
GLONASS L1OF: Built-in PATCH ANTENNA.
GALILEO E1B/C1: Built-in magneto resistive sensor, I2C port output.
BeiDou BD2[Option]: GPS and Beidou dual-mode positioning are supported
in default.
Tracking channels: 72

Positioning:

Auto-positioning: 2.5m [in average]
Auxiliary positioning: 2m [average], with SBAS assistance.
Drift: <0.02m / s
Timing accuracy: 60ns
Reference coordinate system: WGS-84
Maximum altitude: 50000 meters [Please pay attention to atmospheric
Temperature during high-altitude flight, and please open the flight mode]
Maximum speed: 500m / s
Acceleration: <4g

Electrical performance:

Tracking Sensitivity:161dBm
Capture sensitivity: -148dBm
Cold start time: 29s [inaverage]
Warm start time: 28s [inaverage]
Hot start time: 1s [inaverage]
Operation Temperature: -40℃ to +85℃
Size: 41.5*39.6*5.3mm

Interface electrical performance:

Wide voltage range: the main power supply is + 3.0 ~ 5.5V
UART port: GPS data; I2C port: magnetic compass data [HMC5883L]
GPS output data baud rate 9600bps, I2C port ADDR: 7bit 0x1E, 8bit_read 0x3D, 8bit_write 0x3E

Package Including:

1 * GPS BDS Compass Module
1 * Sticker
