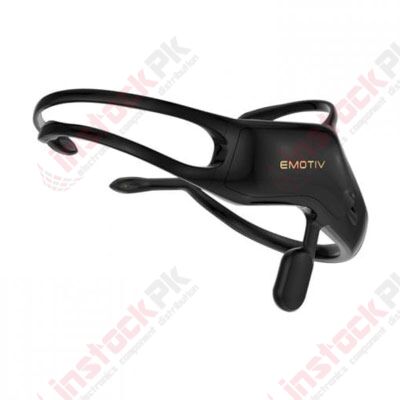

EMOTIV: Insight – 5 Channel Wireless EEG Headset
Designed for self-quantification, brain-computer interface, and field research, EMOTIV INSIGHT 5-channel mobile EEG boasts advanced electronics that are fully optimized to produce clean, robust signals anytime, anywhere. Leveraging years of science-backed research and experience to create the next generation brainwear®, the INSIGHT features an elegant, lightweight and user-friendly design.
NEW FEATURES:
- Improved radio connectivity, updated antenna with Bluetooth 5 support.
- Improved battery life for up to 20hrs.
- Includes Protective Travel Case.
Disclaimer – EMOTIV products are intended to be used for research applications and personal use only. Our products are not sold as medical devices — as defined in EU directive 93/42/EEC. Our products are not designed or intended to be used for diagnosis or treatment of disease.
EEG sensors
5 channels: AF3, AF4, T7, T8, Pz
2 references: CMS/DRL references on left mastoid process
New three prong gummy sensor: for better hair penetration on Pz
Sensor material: Hydrophilic semi-dry polymer
Connectivity
Wireless: Bluetooth Low Energy – Improved radio connectivity, updated antenna with Bluetooth 5 support.
EEG signals
Sampling rate: 128 samples per second per channel
Resolution: 16 bits with 1 LSB = 0.1275μV
Frequency response: 0.5-43Hz, digital notch filters at 50Hz and 60Hz
Filtering: Built in digital 5th order Sinc filter
Dynamic range (input referred): 8400 μV(pp)
Coupling mode: AC coupled
Motion sensors
IMU part: ICM-20948
Accelerometer: 3-axis +/-8g
Gyroscope: 3-axis +/-2000 dps (converted to 4 normalised quaternions)
Magnetometer: 3-axis +/- 12 gauss
Sampling rate: 32 Hz
Resolution: 16 bits
Power
Battery: Internal Lithium Polymer battery 480mAh
Battery life: Improve battery life up to 20hrs on a single charge.
Detections**
Mental commands: neutral + up to 4 pretrained items per training profile
Performance metrics: Excitement, Engagement, Relaxation, Interest, Stress, Focus
Facial Expressions: Blink, Wink L/R, Surprise, Frown, Smile, Clench
** access subject to license. Raw EEG also available
| Part Number | Insight |
|---|---|
| Manufacturer | EMOTIV |
| Weight (KG) | 0.800000 |
| Packing Unit | 1 Piece |
| Product Availability | Available on Demand |
