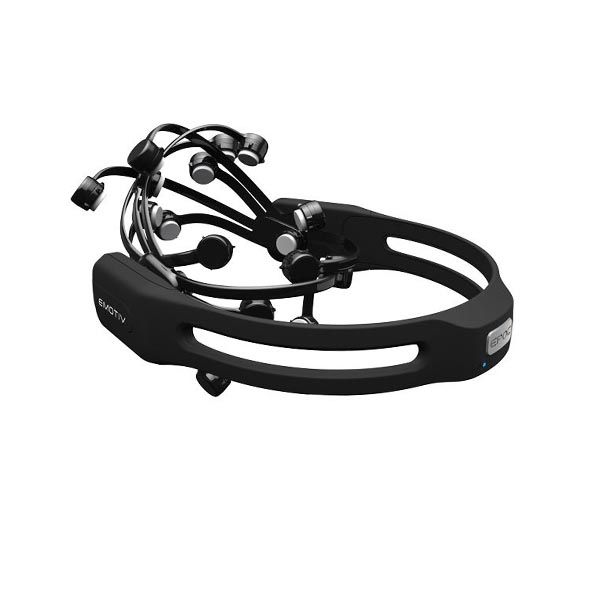

EMOTIV EPOC 14-Channel Mobile EEG

The Emotiv EPOC+ research grade 14 Channel Mobile EEG designed for practical contextualized research and advanced brain control interface (BCI) applications. Provides access to dense array, high quality, raw EEG data with software subscription. Conduct research leveraging our detections for Facial Expressions, Performance and Emotion Metrics, and Mental Commands.

FEATURES:

1. 14 channels: AF3, F7, F3, FC5, T7, P7, O1, O2, P8, T8, FC6, F4, F8, AF4
2. 2 references: In the CMS/DRL noise cancellation configuration P3/P4 locations
3. Sampling method: Sequential sampling. Single ADC
4. Sampling rate: 128 SPS or 256 SPS* (2048 Hz internal)
5. Resolution: 14 bits 1 LSB = 0.51μV ( 16 bit ADC, 2 bits instrumental noise floor discarded), or 16 bits*
6. Bandwidth: 0.2 – 43Hz, digital notch filters at 50Hz and 60Hz
7. Filtering: Built in digital 5th order Sinc filter
8. Dynamic range (input referred): 8400μV(pp)
9. Coupling mode: AC coupled

SPECIFICATIONS:

1. Wireless: Bluetooth® Smart
2. Proprietary wireless: 2.4GHz band
3. Battery: Internal Lithium Polymer battery 480mAh
4. Battery life: up to 12 hours using proprietary wirelss, up to 6 hours using Bluetooth Smart

PACKAGE INCLUDES:

1. 1 X EMOTIV EPOC 14-Channel Mobile EEG
