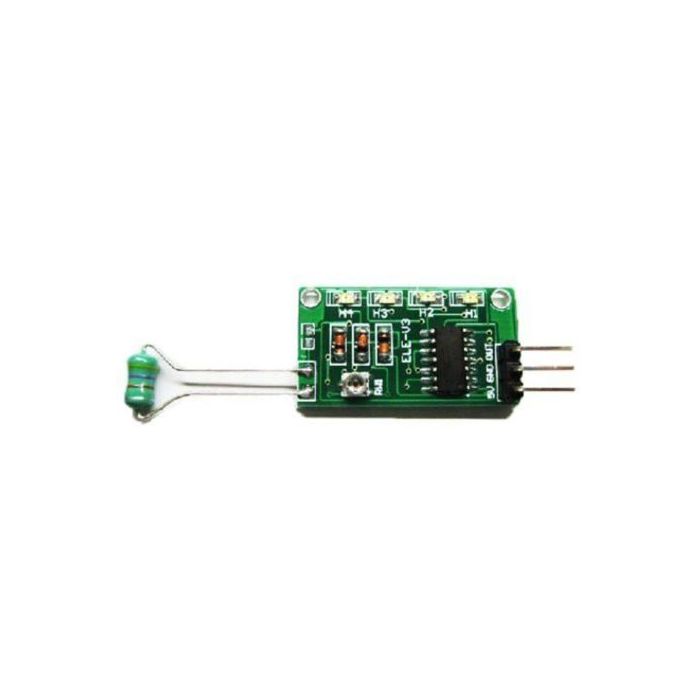

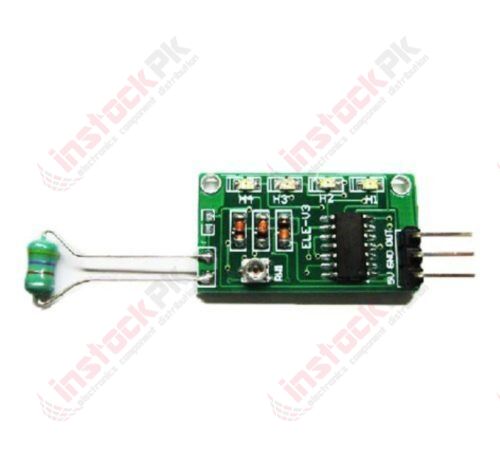

Electromagnetic Wave Detection Sensor V3.0
SKU
MD-01254
PKR 2,480.00
Electromagnetic Wave Detection Sensor is used to detect and display electromagnetic wave strength.
🔥 High Demand Allocation:
4 Units
⚠️ Limited Quantity Remaining
- Buy 3 for PKR 2,340.00 each and save 6%
- Buy 10 for PKR 2,150.00 each and save 13%
Categories: Current Sensors, Environmental Sensors
Electromagnetic Wave Detection Sensor is used to detect and display electromagnetic wave strength. And this version is V3.0 module and include all of the function of both of the V2.0 and V1.0. The V3.0 module have two kind of output way : one kind is the voltage display electromagnetic wave strength and the other kind is the LED display electromagnetic wave strength.
1、The parameters of electromagnetic wave detection sensor module :
Input voltage : 5V
Range : 50Hz - 100MHz
The working current : 3mA
Output :
1：the voltage display electromagnetic wave strength
2：the LED display electromagnetic wave strength
Input voltage : 5V
Range : 50Hz - 100MHz
The working current : 3mA
Output :
1：the voltage display electromagnetic wave strength
2：the LED display electromagnetic wave strength
Can adjust electromagnetic wave detection strength through potentiometer
Size : (length) 32mm * (width) 18mm * (high 8mm)
2、Connection mode:
5V : power input interface.
GND : power to interface.
Out : output the value of voltage.
Size : (length) 32mm * (width) 18mm * (high 8mm)
2、Connection mode:
5V : power input interface.
GND : power to interface.
Out : output the value of voltage.
3、Application of electromagnetic wave sensor :
To detect the whether electromagnetic wave or not and to confirm the strength of the electromagnetic wave.
| Part Number | NA |
|---|---|
| Manufacturer | NA / Unknown |
| Weight (KG) | 0.010000 |
