DWIN: 5 Inch HMI TFT Touch Screen LCD Display Module - DMG80480C050-03WTR

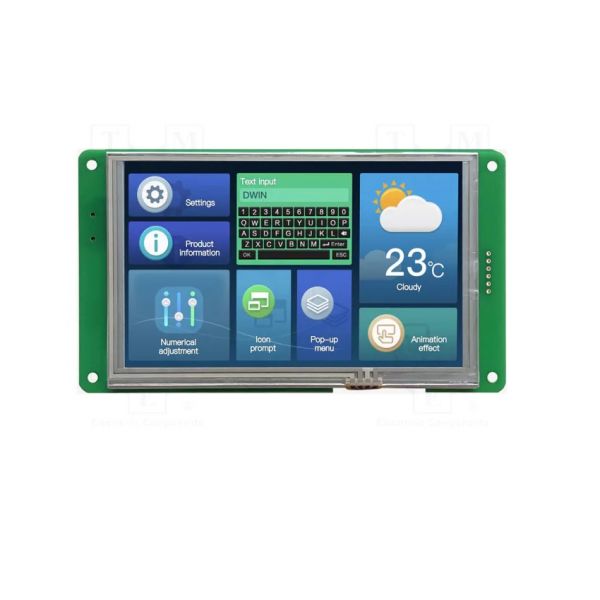

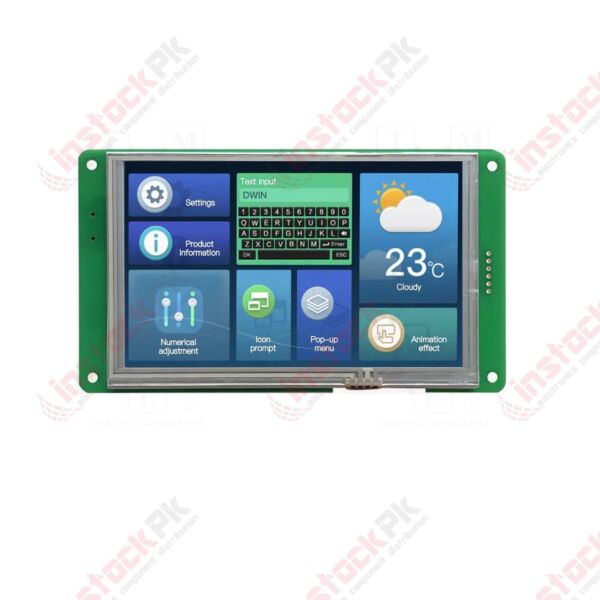

DWIN hot sale and most welcomed 5 inches High standard TFT LCD Module HMI Display with Touch Panel.DMG80480C050_03W is the intelligent touch screen(touch screen can be removed) with UART PORT which can be controlled by Any MCU via commands, so it can be used as TFT Display & Touch controller in various electronic equipment， music play is supported. DWIN display is your best choice for the HMI project. DMG80480C050_03W LCD which includes GUI and OS dual-core. GUI kernel could support the UI Interface design based on DWIN designed software tool, with powerful functions, including data, text, curves, basic graphics, key-value upload, etc. OS kernel could be open to customers for second development, under OS compile, strengthen the function of GUI. Modbus is supported to communicate with PLC. Any MCU can be connected with DWIN smart display. Such as Arduino etc.

Features:

• Running DGUS II system, commercial grade.
• 5.0inch 480xRGBx800 Pixels resolution, 24bit Colors.
• No touch screen/Resistive touch screen/Capacitive touch screen optional;
• 10Pin1.0mm FCC connection wire,support TTL Interface;
• Easy to design,16Mb Flash, 128Kb RAM, 512Kb Nor Flash HMI Smart Display.
• High standard TFT LCD, TN Panel. The viewing Angle is 70°/70°/50°/70° (L/R/U/D).
• When a product crashes by accident, you can use PGT05 to update the DGUS kernel and make the product return to normal.

Touch parameters:

• Type: RTP (Resistive touch panel)
• Structure: ITO film + ITO glass
• Touch Mode: Support point touch and drag
• Surface Hardness: 3H
• Light Transmittance: Over 80%
• Life: Over 1,000,000 times touch
• Type: CTP (Capacitive touch panel)
• Structure: G+G structure with a surface cover of Asahi tempered glass
• Touch Mode: Support point touch and drag
• Surface Hardness: 6H
• Light Transmittance: Over 90%
• Life: Over 1,000,000 times touch

Display:

• Color: 24-bit 8R8G8B
• Display Area（A.A): 108.0mm (W)×64.8mm (H)
• Resolution: 800×480
• Backlight: LED
• Brightness: DMG80480C050-03WTR: 240nit

Voltage & Current:

• Power Voltage    4.5~5.5V
• Operation Current    VCC = +5V, Backlight on, 240mA / VCC = +5V, Backlight off, 70mA

Reliability Test:

• Working Temperature: -20℃~70℃
• Storage Temperature: -30℃~80℃
• Working Humidity: 10%~90%RH

Interface:

• User Interface: 10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s
• Flash: 16MBytes NOR Flash, for fonts, pictures, and audio files. Rewrite cycle: over 100,000 times
• Buzzer: 3V passive buzzer. Power: <1W
• SD interface: FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
• Reserved module interface: Wi-Fi module: connect to the cloud platform to update remotely
• USB module: download files by USB flash disk
• PGT05 interface: When a product crashes by accident, you can use PGT05 to update the DGUS kernel and make the product return to normal

Peripheral:

• DMG80480C050-03WTR: Resistive touch panel, Buzzer, Wi-Fi 10 module

Applications:

• Recommended end applications of DWIN T5Lcommercial grade and industrial grade HMI LCD displays: Home applications, Printers and 3D printers, Smart Home Control Sytems, EV charger piles, Industrial Machines, Heat Pumps, Lab and detector equipment, etc.

Package Includes:

• 1 x DWIN 5 Inch HMI TFT Touch Screen LCD Display Touchscreen Module DMG80480C050-03WTR
