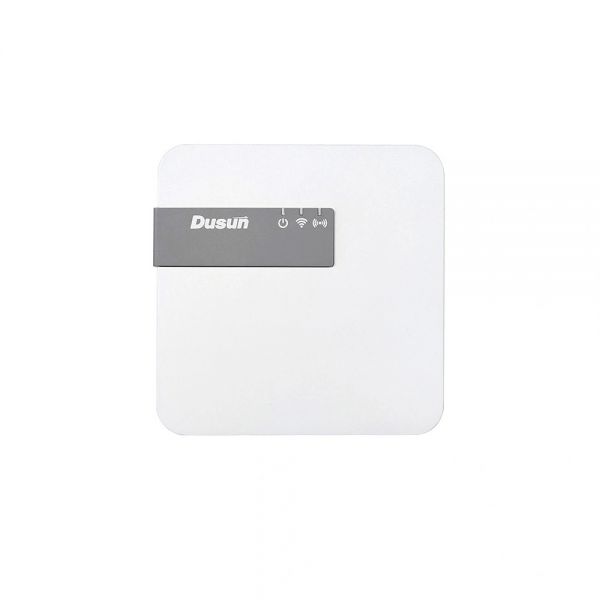

Dusun: DSGW-090 PoE Smart Hub MTK7628 OpenWrt IoT Gateway (BLE/ZigBee/Z-Wave to LTE/Wi-Fi)
DSGW-090 is a highly-integrated small box developed based on 580MHz MT7628AN Wi-Fi-enabled router-on-a-chip SoC and multiple protocols (Zigbee/BLE to Wi-Fi/LTE Cat1/Ethernet) for choose as needed. Dual SIM card slots for reducing the affect of network failure to the minimum. PoE design for easy mounting on ceiling and flats. FEM support.
- OS: Linux@ OpenWrt
- CPU: MTK7628 (MIPS24KEc @580MHz)
- RAM: 128MB
- Flash: 16MB SPI Flash
- Support Zigbee3.0, Bluetooth 5.2;
- 1 x TF Card Slot, 2 x SIM Card Slot (LTE Cat1);
- 1 * WAN/LAN variable port: 10/100 Mbps;
- Built-in Wi-Fi Module (2.4GHz);
- USB type-C (5V / 2A) / PoE for power supply
DSGW-090 Smart Hub (BLE/Zigbee/Wi-Fi/LTE Cat1)
DSGW-090 is a smart hub meticulously engineered to elevate smart living experience. It is powered by the robust MT7628AN WiFi processor,and has dual SIM cards to ensure swift and reliable connectivity even in the face of network failure.
DSGW-090 is also a PoE gateway with 95mm x 95mm x 30mm compact size and cable-free Power over Ethernet (PoE) design, allowing customers to enkjoy the convenience while install and blend it into any environment elegantly and effortlessly.
DSGW-090 smart hub redefines connectivity by integrating an array of popular home automation protocols including Zigbee and BLE. It helps smart apartment, home and office automation solution to gain the ability to remotely operate BLE/Zigbee devices cohesively, and empowers smart gadgets to communicate harmoniously, offering unparalleled convenience and efficiency.
DSGW-090 also support FEM. The IoT FEM is ideal for wireless connectivity, allowing ZigBee, Thread, and Bluetooth standards, with BLUETOOTH 5 included. The IoT FEM is an efficient Internet of Things (IoT) solution when paired with a System on Chip (SoC) platform, resulting in longer battery life and extended transmission range.
Benefits of Using DSGW-090 Ceiling/Flat-mountable PoE Gateways
Cable-free Enclosure to effortlessly adapts to your surroundings
With the included ceiling mounting bracket and Power over Ethernet (PoE) capability, DSGW-090 can can bid farewell to the tangle of cables and the hassle of separate power sources. This gateway enable users to embrace simplicity without compromising on performance and keep your environment sleek and efficient.
Elevate Installation Adaptability
DSGW-090 has both USB Type C interface and PoE port, offering you the flexibility to install the device on your ceiling and eliminating the need for multiple cords. Whether it’s at home, office, or commercial space, the ceiling mounting option maximizes coverage while maintaining a minimalistic appeal.
Zigbee Ethernet Bridge
The DSGW-090 Zigbee over Ethernet gateway hub connects Zigbee network to Ethernet network, enabling data transmission to the Internet, and enjoying great dependability and security.
Features of DSGW-090 Smart Hub (BLE/Zigbee//Wi-Fi/LTE Cat1)
Connecting various sensors/devices through Zigbee3.0, Wi-Fi 2.4G, BLE 5.2 and LTE CAT 1
In addition to USB 5V type C Power supply, it also supports power up the device through the ethernet interface.
Develop your custom firmware from the bottom layer of the hardware with a comprehensive set of resources and services to help developers create successful IoT Gateway projects.
Carrier-certified for immediate deployments and meets a comprehensive range of regulatory and industry standards worldwide.
Dimensions and Package of DSGW-090 Smart Hub (BLE/Zigbee/Wi-Fi/LTE Cat1)
Parameters of DSGW-090 Smart Hub (BLE/Zigbee/Wi-Fi/LTE Cat1)
| CPU | MT7628AN, MIPS24KEc, 580MHZ |
| System | OpenWrt |
| RAM | 128MB |
| Storage | 16MB SPI Flash |
| Power Supply | USB Type-C 5V/2A, POE |
| Indicator LEDs | 1). Power LED 2). Wireless LED 3）LTE indicator |
| Antenna | FPC Antenna |
| Interface | TF Card Slot x 1, SIM Card Slot x 2 |
| Ethernet | 1 * WAN/ LAN 10/100 Mbps variable port |
| Reset | Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds |
| Installation method | Flat, Ceiling |
| Weight | TBD |
| Operating Temperature | -10℃~55℃ |
| Storage Temperature | -20℃~65℃ |
| Operating humidity | 10%~90% |
| IP rating | IP22 |
| Part Number | DSGW-090 |
|---|---|
| Weight (KG) | 0.300000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
