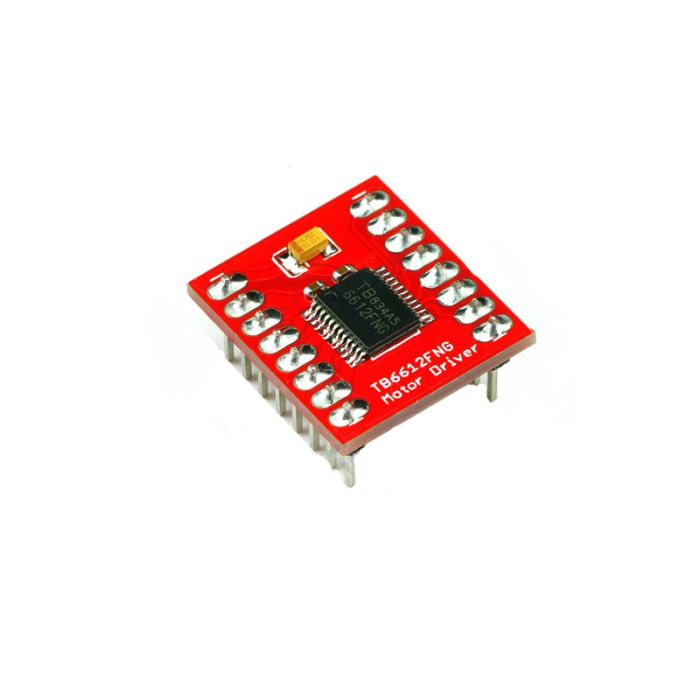

Dual DC Motor Driver TB6612FNG For Arduino

The TB6612FNG Motor Driver can Control up to TWO DC motors at a constant current of 1.2A (3.2A Peak). Two input Signals (IN1 and IN2) can be Used to Control Motor in one of the four function Modes - CW,CCW, short-brake, and stop. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the Motor out of standby mode.

Logic Voltage supply (VCC) can be in the range of 2.7-5.5VDC, while the Motor supply (VM) is Limited to a maximum Voltage of 15VDC. The current output is rated up to 1.2A per Channel (or up to 3.2A for a Short, SINGLE Pulse). Decoupling Capacitors are included on both supply Lines.

FEATURES:

1. Power supply voltage: VM = 15 V(Max).
2. Output current: IOUT=1.2 A(ave) / 3.2 A (peak).
3. Output low ON resistor: 0.5Ω (VM ≥ 5 V).
4. Built-in thermal shutdown circuit and low voltage detecting circuit.
5. Thermal Shutdown Circuit.
6. Heat Radiation Design.
7. Back-EMF protection.

HOW TO USE:

The TB6612FNG is a motor driver IC for DC motor with output transistor in LD MOS structure with low ON-resistor. Two input signals, IN1 and IN2, can choose one of four modes such as CW, CCW, short brake, and stop mode.

APPLICATIONS:

1. Robotics projects.
2. AVR/arduino/Raspberry-pi projects.

PACKAGE INCLUDES:

1. 1 X Dual Motor Driver TB6612FNG For Arduino
