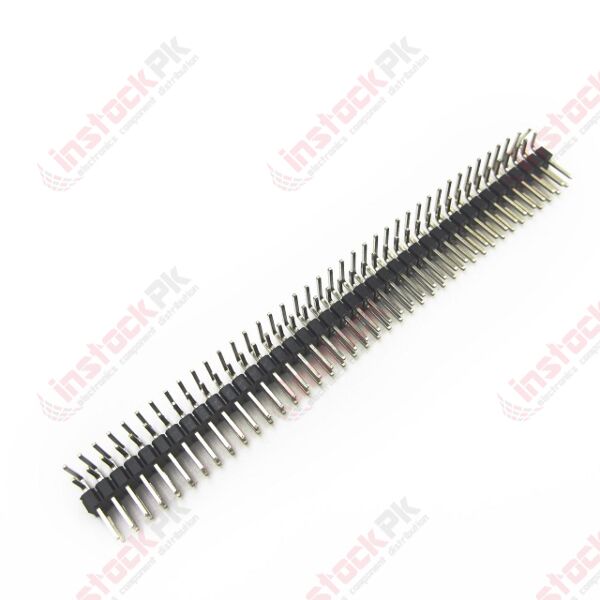

Double Row Right Angle Male Header 2x40 Pins 2.54mm

SKU
MD-01952
PKR35.00
Quantity: 100
  • Buy 3 for PKR33.25 each and save 5%
  • Buy 10 for PKR32.20 each and save 8%
  • Buy 50 for PKR29.75 each and save 15%

This connector is a Double Row Male Pin Header 2.54MM Pitch 40 Pin straight male header strip that can cut or broke into smaller strips. This strip has a standard-color (black) plastic base; other colors are available for those looking to add some character (or color-coded connections) to their projects.

These 0.1″ (2.54 mm) male header pins are commonly used as low-cost connectors for perforated prototyping PCBs. The standard spacing is the same as on most solderless breadboards and matches standard 0.1″-pitch female connectors.

0.1 inch 80 Pin Male Header, the standard spacing is the same as on most solderless breadboards and matches 0.1 female header strips. These straight male pin headers are available in a variety of commonly used pin counts.

A dual row of the 80-holes male header connector can cut to size with a pair of wire-cutters. They mate very well with break away female headers. 2 pcs is used with custom PCBs or general custom headers. 2 rows of 40 pins each that can be cut into the desired section.

A Double Row Male Pin Header 2.54MM Pitch 40 Pin (or simply header) is a form of electrical connector. A male pin header consists of one or more rows of metal pins molded into a plastic base, often 2.54 mm (0.1 in) apart, though available in many spacings. Male pin headers are cost-effective due to their simplicity. The female counterparts are sometimes known as a female socket header, though there are numerous naming variations of male and female connectors.

Features: –

  • Square Posts.
  • Stackable – End to End and Side to side.
  • Can manually broke for length
  • Standoffs allow cleaning of solder contaminants.
  • Connector: Pin Header
  • Connector type: Pin Strips Male
  • Number of pins: 80(2×40)
  • Row: 2
  • High durability and reliability.
  • Industrial finish.
  • Dimensionally Accurate.
  • Corrosion Resistant.
  • Less Maintenance requires.
  • Standard Construction.

Double Row Male Pin Header Specifications: –

  • Pitch: 2.54mm
  • Gender of connector: male
  • Number of pin: 80 ( 2 x 40 ) Pin
  • Type of row: Double
  • Type of connector: straight
  • Length of pin: 11mm

Applications: –

  • Function as recipients for jumpers.
  • Widely used in Smaller Products.
  • Used to Connect boards and shields together.
  • Prevent incorrect insertion in connectors.
Package: –

1 x Double Row Male Pin Header 2.54MM Pitch 40 Pin

Part Number NA
Weight (KG) 0.005000
Packing Unit 1pc
Product Availability In Stock
