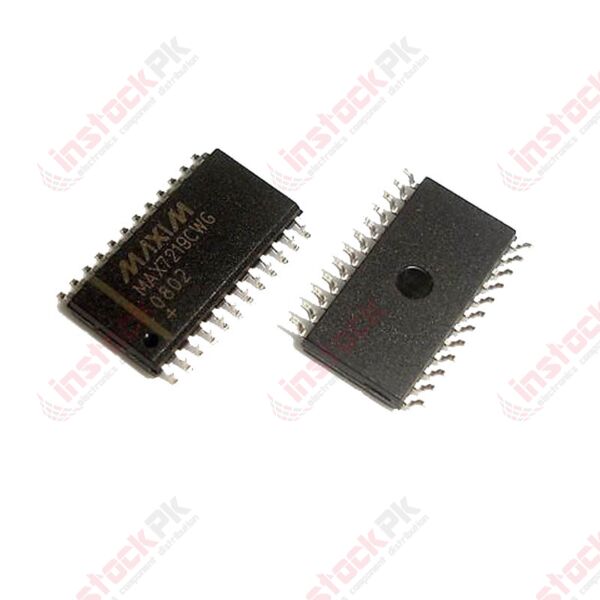

Maxim: 8 Digit LED Display Driver IC SMD 24SOIC - MAX7219CWG
SKU
MD-00353
PKR120.00
Quantity: 100
Display Driver IC MAX7219CWG (SMD)
- Buy 10 for PKR114.00 each and save 5%
- Buy 25 for PKR110.40 each and save 8%
- Buy 100 for PKR102.00 each and save 15%
Categories: Components, Integrated Circuit
The MAX7219 are compact, serial input/output common-cathode display drivers that interfacemicroprocessors (µPs) to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. Included on-chip are a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8x8 static RAM that stores each digit.
FEATURES:
- 10MHz Serial Interface
- Individual LED Segment Control
- Decode/No-Decode Digit Selection
- 150µA Low-Power Shutdown (Data Retained)
- Digital and Analog Brightness Control
- Display Blanked on Power-Up
- Drive Common-Cathode LED Display
- SPI, QSPI, MICROWIRE Serial Interface (MAX7221)
RELATED DOCUMENTS:
APPLICATIONS:
- Bar-Graph Displays
- Industrial Controllers
- Panel Meters
- LED Matrix Displays
PACKAGE INCLUDES:
- 1 X Display Driver IC MAX7219CWG (SMD)
| Part Number | MAX7219CWG |
|---|---|
| Weight (KG) | 0.020000 |
| Manufacturer | Maxim Integrated |
| Product Availability | In Stock |
| Model Number | MAX7219CWG |
| Voltage (Min) | 4.3V |
| Voltage (Max) | 5.5V |
| Power | NA |
| Current (A) | 330m |
| Temperature Range (Min) | 0°C |
| Temperature Range (Max) | 70°C |
| Memory | NA |
| Num of Pin's | 24 |
| SMD_Package | SOP-24 |
