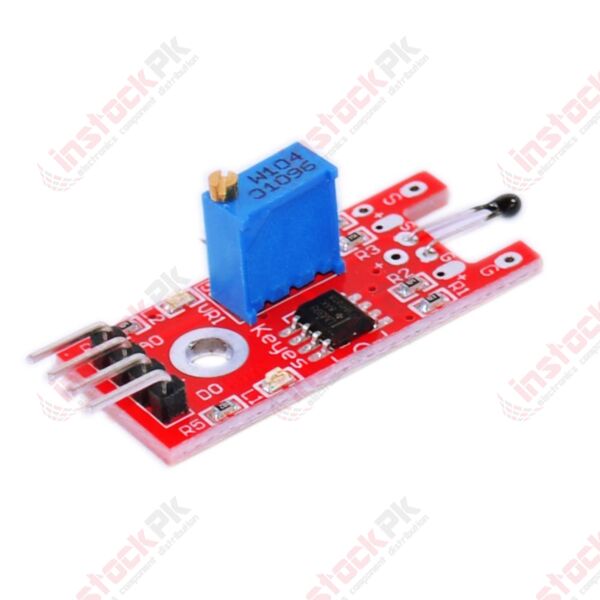

Digital Temperature Sensor Module (KY-028)

FEATURES:

1. Using the NTC thermistor sensor , good sensitivity.
2. The comparator output signal is clean, good waveform , driving ability , more than 15mA.
3. Adjust the temperature distribution position detection threshold.
4. The working voltage: DC 3.3V-5V.
5. The output format : digital switching outputs ( 0 and 1 )
6. A fixed bolt holes for easy installation.
7. Using a wide voltage LM393 comparator.

HOW TO USE:

1. The thermal resistance of the module is very sensitive to the ambient temperature , typically for detecting the temperature of the surrounding environment.
2. Through the potentiometer adjustment, you can change the temperature detection threshold ( ie, control temperature ) , such as the need to control the ambient temperature is 50 degrees , the module in the corresponding ambient temperature to its green light , DO high power output when flat , set the temperature below this value, the output is high , the green light does not shine ;
3. DO output can be directly connected to the microcontroller through the microcontroller to detect high and low , thereby detecting temperature changes in the environment.
4. DO output of the relay module can directly drive the shop , which can be composed of a thermostat to control the temperature of work -related equipment can also be connected to the cooling fan , etc. .
5. The temperature detection range of the modules 20 °c to 80 °c.
6. The module can be replaced with a line of temperature sensors used to control the water temperature , water and the like.

RELATED DOCUMENTS:

1. LM393 Datasheet

PACKAGE INCLUDES:

1. 1 X -028)
