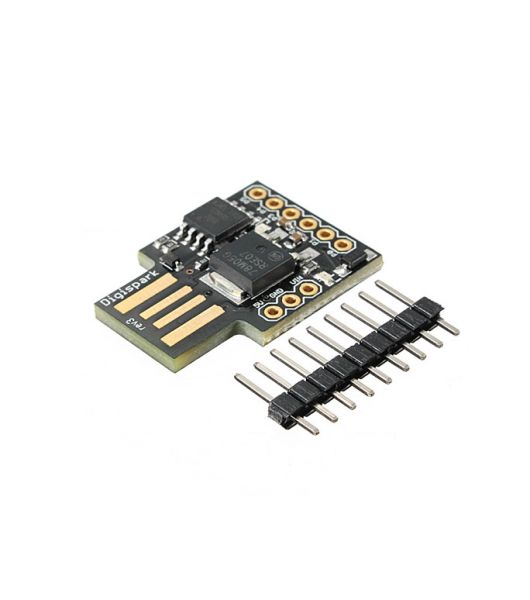

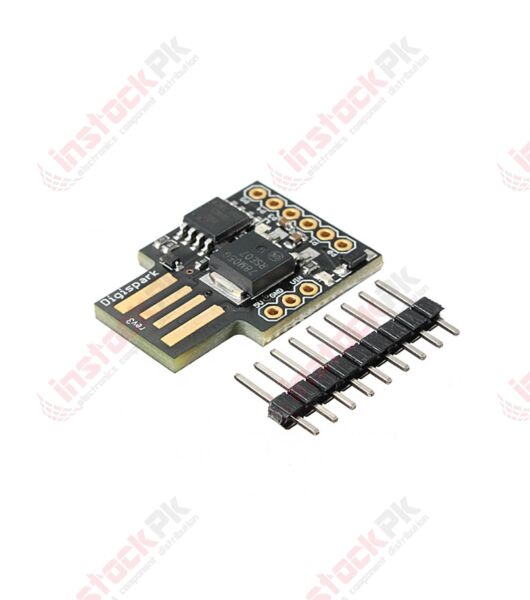

Digispark kickstarter Mini USB ATTINY85 Development Board

SKU
MD-00408
PKR820.00
Quantity: 20
The Digispark is an Attiny85 based microcontroller development board similar to the Arduino line, only cheaper, smaller (about the size of a quarter), and a bit less powerful.
  • Buy 3 for PKR779.00 each and save 5%
  • Buy 10 for PKR754.40 each and save 8%
  • Buy 50 for PKR697.00 each and save 15%

The Digispark is an Attiny85 based microcontroller development board similar to the Arduino line, only cheaper, smaller (about the size of a quarter), and a bit less powerful. With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE.

SPECIFICATIONS:

  1. Support for the Arduino IDE 1.0+ (OSX/Win/Linux)
  2. Power via USB or External Source - 5v or 7-35v (automatic selection)
  3. On-board 500ma 5V Regulator
  4. Built-in USB
  5. 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
  6. 8k Flash Memory (about 6k after bootloader)
  7. I2C and SPI (vis USI)
  8. PWM on 3 pins (more possible with Software PWM)
  9. ADC on 4 pins
  10. Power LED and Test/Status LED

 PHYSICAL DIAGRAM:

PHYSICAL DIAGRAM



RELATED VIDEO:

PACKAGE INCLUDES:

  1. 1 X Digispark kickstarter Mini USB ATTINY85 Development Board
Part Number ATTINY85
Weight (KG) 0.020000
Manufacturer Digispark
Product Availability In Stock
Model Number Digispark kickstarter Mini USB ATTINY85
Voltage (V) USB or 7-35
Current (A) 500m
Power NA
Processor ATTINY85
Frequency NA
Memory 8 KB
Operating System NA
Temperature Range (Min) -40°C
Temperature Range (Max) NA
Bluetooth Interface No
Interface NA
Size (mm) NA
