Digilent: Pmod GYRO: 3-axis Digital Gyroscope - 410-215
SKU
MD-01968
Categories: Accelerometer/Gyrometer Sensors, FPGA Accessories

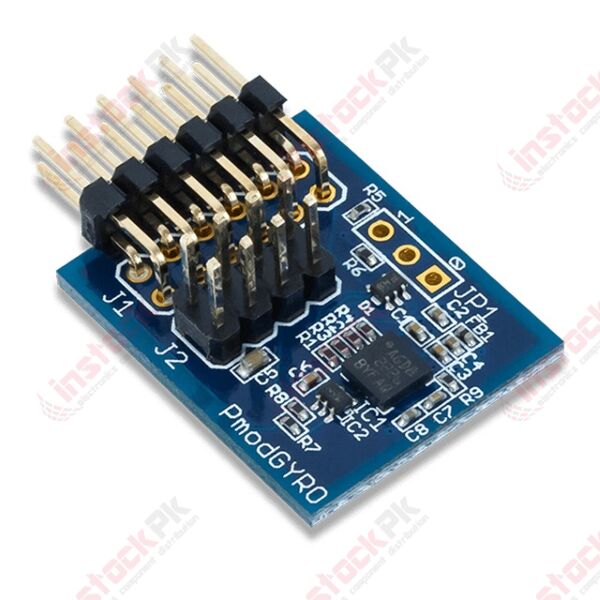

The Pmod GYRO is a 3-axis gyroscope powered by the ST Microelectronics L3G4200D. By communicating with the chip through SPI or I2C, users may configure the module to report angular momentum at a resolution of up to 2000 dps at an output rate up to 800Hz.
Features
- 3-axis MEMS digital gyroscope with high shock survivability
- Get angular velocity data with user selectable resolution (250/500/2000dps)
- Two customizable interrupt pins
- User configurable signal filtering
- Power-down and Sleep modes
- Small PCB size for flexible designs 1.0 in × 0.8 in (2.5 cm × 2.0 cm)
- 12-pin Pmod connector with SPI interface and additional I²C interface
- Library and example code available in resource center
What's Included
- Pmod GYRO
- Custom antistatic Pmod packaging
| Part Number | 410-215 |
|---|---|
| Manufacturer | Digilent |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
