Digilent - Anvyl Spartan-6 FPGA Trainer Board 410-258
SKU
MD-01267
Special Price
PKR73,600.00
was
PKR122,500.00
Quantity: 0

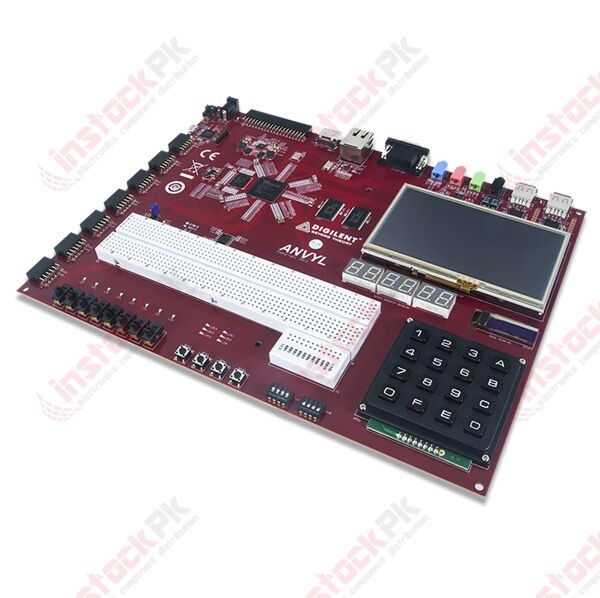

The Anvyl FPGA development platform is a complete, ready-to-use digital circuit development platform based on a speed grade -3 Xilinx Spartan-6 LX45 FPGA. The large FPGA, along with the 100-mbps Ethernet, HDMI Video, 128MB DDR2 memory, 4.3” LED backlit LCD touchscreen, 128x32 pixel OLED display, 630 tie-point breadboard, multiple USB HID controllers, and I2S audio codec makes the Anvyl an ideal platform for an FPGA learning station capable of supporting embedded processor designs based on Xilinx's MicroBlaze™.
Categories: FPGA Boards, Trainer Boards
Product Description
The Anvyl FPGA development platform is a complete, ready-to-use digital circuit development platform based on a speed grade -3 Xilinx Spartan-6 LX45 FPGA. The large FPGA, along with the 100-mbps Ethernet, HDMI Video, 128MB DDR2 memory, 4.3” LED backlit LCD touchscreen, 128x32 pixel OLED display, 630 tie-point breadboard, multiple USB HID controllers, and I2S audio codec makes the Anvyl an ideal platform for an FPGA learning station capable of supporting embedded processor designs based on Xilinx's MicroBlaze™.
The Anvyl is compatible with all Xilinx CAD tools, including ChipScope™, EDK, and the free ISE® WebPACK™, so designs can be completed at no extra cost. The board dimensions are 27.5cm x 21cm.
Support Materials
Datasheet (PDF) Schematics (PDF)For all other material:
Resource CenterGet Academic Pricing
Features:
- Xilinx Spartan-6 LX45 FPGA (XC6SLX45-CSG484-3)
- 6,822 slices, each containing four input LUTs and eight flip-flops
- 2.1Mbits of fast block RAM
- Four clock tiles (eight DCMs & four PLLs)
- 58 DSP slices
- 500MHz+ clock speeds
- 128MB DDR2 SDRAM
- 2MB SRAM
- 16MB QSPI FLASH for configuration and data storage
- 100 MHz Crystal Oscillator
- Ships with a 20W power supply and USB cable
- 10/100 Ethernet PHY
- HDMI Video Output
- 12-bit VGA port
- I2S Audio codec with line-in, line-out, mic, and headphone
- Digilent USB-JTAG circuitry with USB-UART function
- 4.3" wide-format vivid color LED backlit LCD screen
- 128x32 pixel 0.9" OLED graphic display panel
- Three two-digit seven-segment LED displays
- On-board USB2 ports for programming and USB-HID devices (for mouse/keyboard)
- Keypad with 16 labeled keys (0-F)
- GPIO: 14 LEDs (10 red, 2 yellow, 2 green), 8 slide switches, 8 DIP switches in 2 groups, and 4 push buttons
- Breadboard with 10 Digital I/Os
- 32 I/Os routed to 40-pin expansion connector (I/Os are shared with Pmod ports)
- Seven 12-pin Pmod ports with 56 I/Os total
What's
|
|
Part Number | 410-258 |
---|---|
Weight (KG) | 0.600000 |
Manufacturer | Digilent |
Product Availability | Available on Demand |
Voltage (V) | NA |
Power | NA |
Frequency | NA |
Memory | NA |
Operating System | NA |
Temperature Range (Min) | NA |
Temperature Range (Max) | NA |
Bluetooth Interface | No |
Interface | NA |
