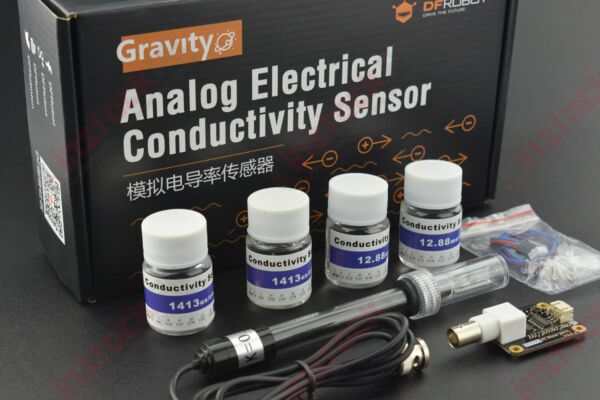

DFRobot: Analog Electrical Conductivity Meter With Temperature Compensation - DFR0300

This Analog EC Meter is unique. It is designed specially for Arduino controllers and has built-in simple, convenient and practical features. After simple connections with Arduino, you will be able to measure the EC value easily.

SPECIFICATIONS:

1. Operating Voltage: +5.00 V
2. Measuring Range: 1ms/cm -- 20ms/cm
3. Operating Temperature: 5 - 40 ℃
4. Accuracy: < ±5% F.S (using Arduino 10 bits ADC)
5. PH2.0 Interface (3-pin SMD)
6. Conductivity Electrode (Electrode Constant K = 1,BNC connector)
7. Cable Length of the Electrode: about 60cm(23.62")
8. DS18B20 Temperature Sensor(Waterproof)
9. Power Indicator

 HOW TO USE WITH ARDUINO:

RELATED DOCUMENTS:

1.  Analog Electrical Conductivity Meter User Manual.

PACKAGE INCLUDES:

1. 1 X Analog Electrical Conductivity Meter With Temperature Compensation
