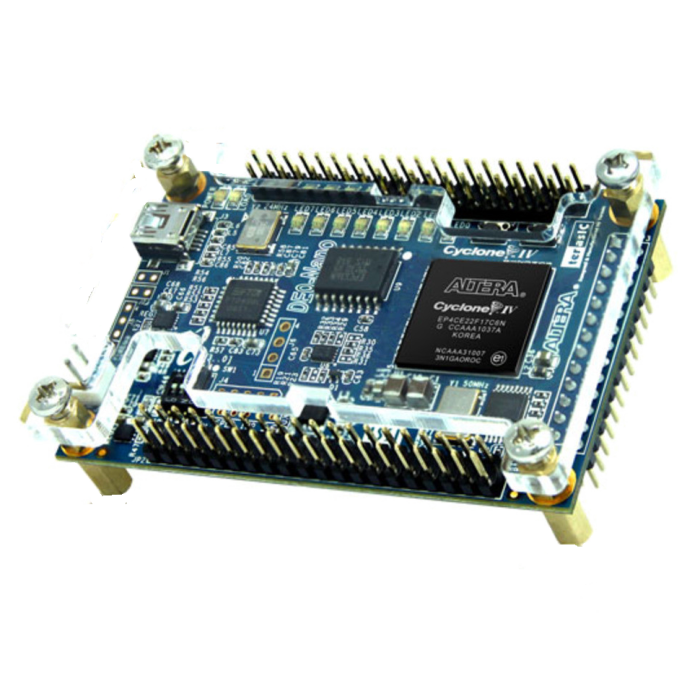

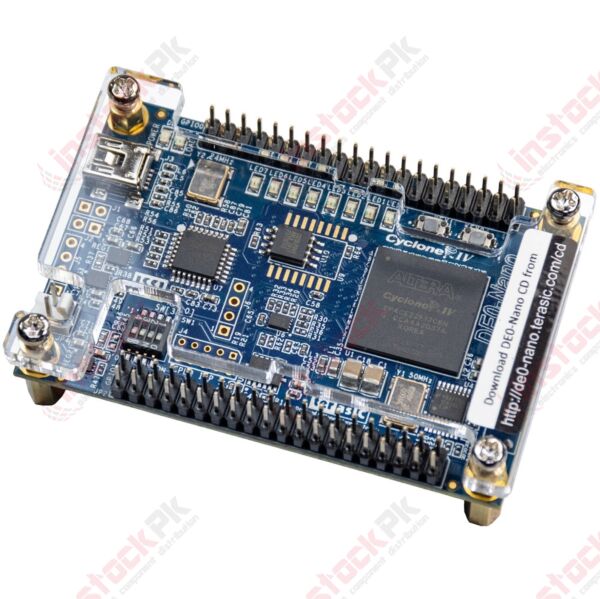

The Terasic DE0-Nano development board introduces a compact-sized Field Programmable Gate Array (FPGA) platform ideally suited for prototyping circuit designs, robotic control, and mobile projects. Built around the powerful Intel/Altera Cyclone IV E EP4CE22F17C6N FPGA, this kit delivers 22,320 Logic Elements (LEs) in a highly portable footprint measuring just 49mm x 75.2mm.
Engineered for both educational environments and professional prototyping, the board features an integrated USB-Blaster for easy programming directly via your PC—no external hardware programmer required. It comes rich with on-board peripherals, including a 3-axis digital accelerometer, an 8-channel 12-bit Analog-to-Digital Converter (ADC), and 32 MB of SDRAM. With expansion capabilities that yield up to 72 general-purpose I/O pins, the DE0-Nano is an exceptionally versatile hardware platform for testing digital logic, soft-core processors (like the Nios II), and complex algorithms.
- High-Density FPGA: Features the Altera Cyclone IV EP4CE22F17C6N chip with 22,320 Logic Elements.
- Integrated USB-Blaster: Program the board effortlessly over a simple USB Mini-B connection without extra hardware.
- Built-in Sensors: Features an ADXL345 3-axis accelerometer and an 8-channel, 12-bit Analog-to-Digital Converter (ADC).
- Robust Memory Capacity: Includes 32 MB of SDRAM, 16 Mb of Serial Configuration memory, and a 2 Kb EEPROM.
- Pocket-Sized Prototyping: Extremely lightweight (approx. 40g) and compact (49mm x 75.2mm) with a clear acrylic protective guard cover.
- Massive Expansion I/O: Two 40-pin GPIO headers and one 26-pin analog expansion header yield substantial custom connectivity.
Technical Specifications (Attributes for Grid/Table)
You can map these attributes directly into your Magento Product Attribute Set to display a clean, scannable technical specification table:
| Attribute Code | Attribute Label | Attribute Value |
|---|---|---|
| manufacturer | Manufacturer / Brand | Terasic Technologies |
| fpga_chip | FPGA Core | Intel / Altera Cyclone IV E (EP4CE22F17C6N) |
| logic_elements | Logic Elements (LEs) | 22,320 |
| embedded_memory | Embedded Memory | 594 Kbits |
| multipliers | Embedded Multipliers | 66 (18 x 18-bit) |
| plls | Phase-Locked Loops (PLLs) | 4 |
| ram_memory | On-Board SDRAM | 32 MB |
| config_memory | Configuration Memory | 16 Mb EPCS16 Serial Configuration Device |
| eeprom | EEPROM | 2 Kb I2C EEPROM |
| adc_channels | A/D Converter | 8-channel, 12-bit Resolution (NS ADC128S022) |
| accelerometer | Accelerometer | 3-axis Digital Accelerometer (ADXL345) |
| gpio_pins | Digital I/O Pins | 72 Pins (via dual 40-pin headers) |
| analog_io_pins | Analog I/O Pins | 16 Digital Pins + 8 Analog Input Lines (via 26-pin header) |
| clock_oscillators | Clocking | On-board 50 MHz Oscillator |
| onboard_interfaces | User Interface Components | 8 Green LEDs, 2 Push-buttons, 4 Dip-switches |
| programming_type | Programming Interface | On-board USB-Blaster Circuit |
| power_options | Power Supply | USB Mini-B, 2-pin External Header, or DC 5V GPIO pins |
| dimensions | Dimensions (W x L) | 49.0 mm x 75.2 mm |
| weight | Weight | Approx. 40g |
Box Contents / What’s Included
- 1x Terasic DE0-Nano Board
- 1x Clear Acrylic Protective Cover (pre-installed)
- 1x USB Mini-B Cable
- 1x Quick Start Guide
Software Compatibility
- Intel Quartus Prime Lite Edition (or older Altera Quartus II software)
- Nios II Embedded Design Suite (EDS)
- Terasic DE0-Nano Control Panel & System Builder utilities
| Part Number | DE0-Nano |
|---|---|
| Manufacturer | TerAsic |
| Weight (KG) | 0.200000 |
| Material | NA |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
