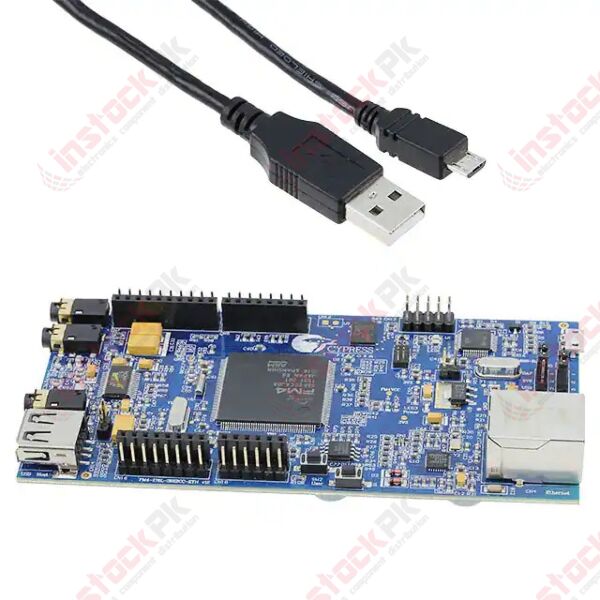

Cypress: ARM Cortex-M4 32Bit MCU Starter Kit with Ethernet and USB Host - FM4-176L-S6E2CC-ETH
SKU
MD-02041
PKR29,500.00
Quantity: 5
FM4-176L-S6E2CC-ETH - Development Kit, FM4-176L-S6E2CC-ETH MCU, Ethernet, USB, Audio, Arduino Uno Compatible
Categories: Avolution Kits, Development Boards
FM4-176L-S6E2CC-ETH ARM Cortex-M4 MCU Starter Kit with Ethernet and USB Host, Cypress
The 200 MHz ARM Cortex-M4 FM4 S6E2C-Series Microcontroller Starter Kit enables rapid development with Ethernet, USB and audio. On-board sensors include an Accelerometer and a Phototransistor. External peripherals interface to Stereo codec, SRAM memory, Serial flash and multi-colour LEDs.
The FM4-176L-S6E2CC-ETH kit supports the industry standard CMSIS-DAP interface for programming and debugging of the S6E2C-Series microcontrollers.
The board is Arduino Uno-compatible and offers expansion with Arduino shields.
The FM4-176L-S6E2CC-ETH kit supports the industry standard CMSIS-DAP interface for programming and debugging of the S6E2C-Series microcontrollers.
The board is Arduino Uno-compatible and offers expansion with Arduino shields.
Arm® Cortex®-M4 MCU starter kit with Ethernet, USB and audio is a low-cost development platform for the Cypress 200MHz FM4 S6E2C-Series of Arm® Cortex® MCUs. The development kit enables rapid development of high performance embedded systems using the Arduino™ Uno-compatible interface to connect Arduino shields for low-cost hardware expansion. 10/100 Ethernet (IEEE 802.3), USB host, USB device, CAN, LIN, high-speed quad SPI, I2S, I2C and UART are communication interfaces.
- 200MHz Arm® Cortex® MCU with DMA
- 675 CoreMark® MCU
- Single precision IEEE 754 compliant floating point unit
- 2MB flash, 256KB SRAM and 190 GPIOs
Kit Contents
FM4 S6E2C-Series Board
USB Standard-A to Micro-B cable
Quick Start Guide
USB Standard-A to Micro-B cable
Quick Start Guide
| Part Number | FM4-176L-S6E2CC-ETH |
|---|---|
| Manufacturer | Cypress Semiconductor |
| Weight (KG) | 0.050000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
