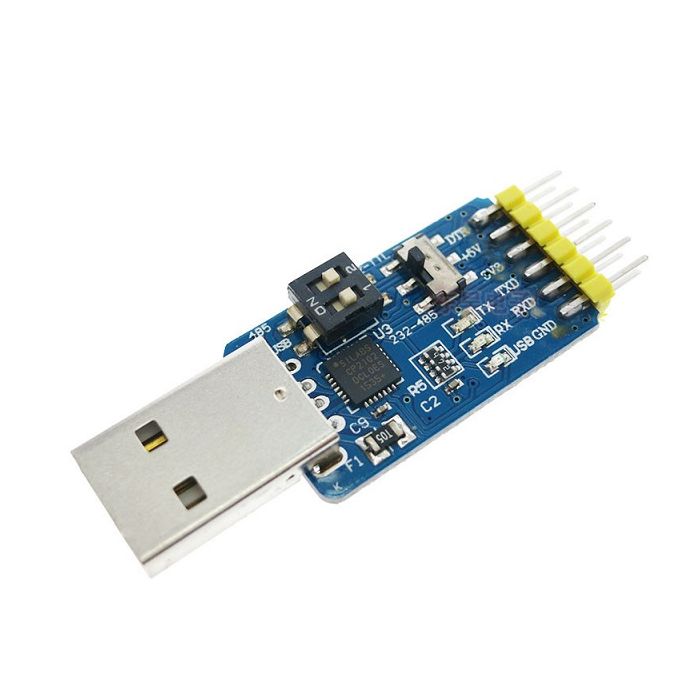

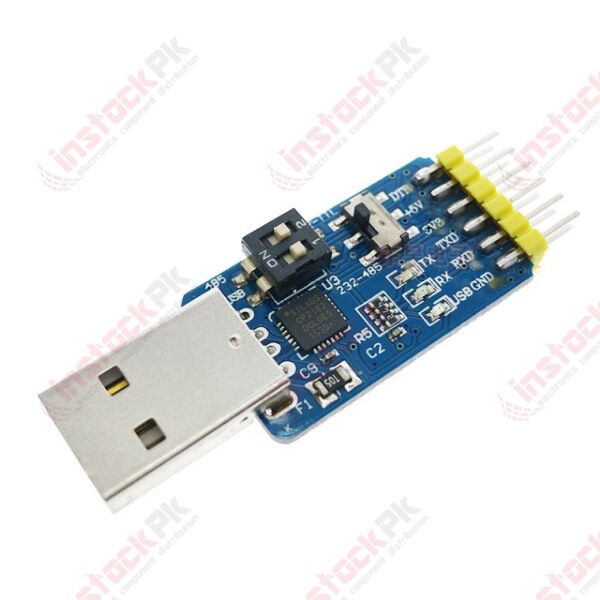

CP2102 USB to TTL 6-in-1 Serial Adapter Module for USB/TTL/RS232 to TTL/RS232/RS485

SKU
MD-02015
PKR950.00
Quantity: 12
  • 6 in 1 Multifunctional interface module supports USB to TTL, USB to 232, USB to 485, TTL to 232, TTL to 485, 232 to 485. Serial Interface Module CP2102 USB TTL 485 232 Mutual Transfer
  • Before using the 6 in 1 Multifunctional interface module, you need to install the CP2102 driver
  • The core of this serial adapter module is the CP2102. CP2102 USB to serial chip is the best quality , most stable performance far exceeds the cost of the same chip , such as PL2303, FT232, CH341 and so on. Compatible with 3.3V and 5V
  • CP2102 serial adapter module compatible with Windows 7/8/10, Linux, Arduino, nextion display, beitian gps module, ESP8266
  • Transceiver indicator : When the serial line to send or receive data lines , the board will receive indicator lights for easy debugging

Product Parameters

Core chip: CP2102
Small size: 3.1 X 1,8CM
Voltage: 3.3V and 5V
USB Interface: 2.0
Temperature Range: -40℃ to +85℃
Baud Rate: 300 bps to 1.5 Mbps
Key Function: USB-TTL, USB-RS232, USB-RS485, TTL-RS232, TTL-RS485, RS232-RS485
Pin: Standard USB type A male and TTL(TXD RXD) 232(232T 232R) 485(A B)
Packing List: 1 x 6 in 1 CP2102 Serial Module + 1 x 4P female to female dupond cable
Part Number NA
Weight (KG) 0.010000
Packing Unit 1pc
