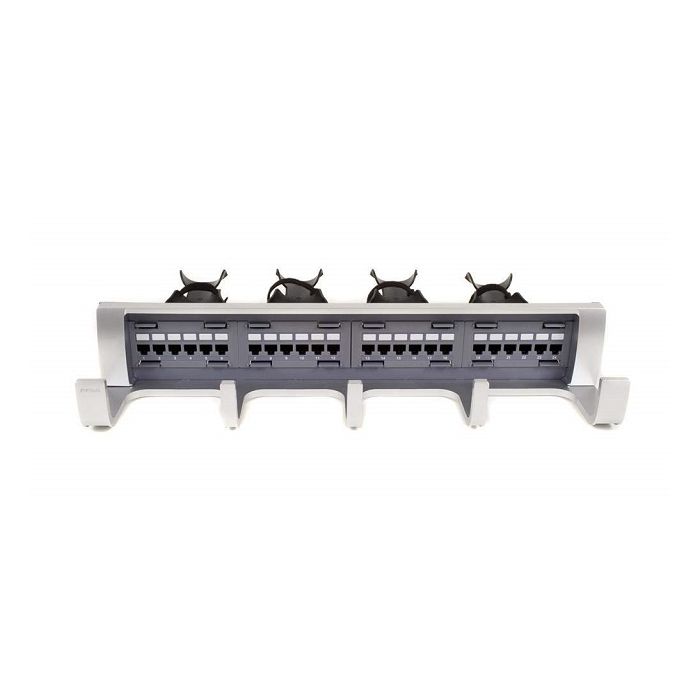

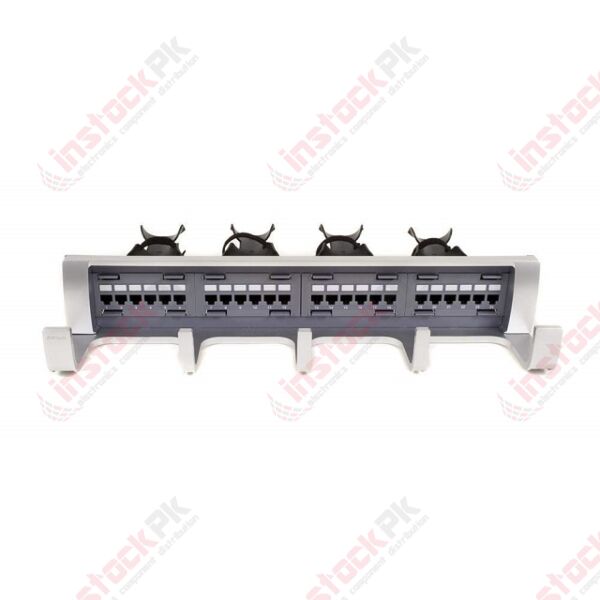

CommScope: SYSTIMAX Patch Panel PATCHMAX GS3, 24 Port, UTP, Cat6 - 760102244 | 360-PM-GS3-2U
PKR 0.00
Only 8 left
SKU
MD-02158
Description
The GigaSPEED XL PATCHMAX GS3 Panel is part of the next generation SYSTIMAX 360 solutions platform. The new panel offers easy cable routing and bundling utilizing the rear cable manager and are available in a 24 port configuration. The 360 PATCHMAX G S3 panel also supports deployment of InstaPATCH Cu pre-terminated copper and features the elegant SYSTIMAX 360 design. The PATCHMAX GS3 panel accepts four (4) PATCHMAX GS Distribution Modules which can be rotated forward, allowing front-access to the 110 type IDC terminals for easy cable termination. PATCHMAX GS Distribution Modules feature an innovative termination manager and rear housing which provides easier, faster, more reliable terminations and reduced variability in the placement and termin ation of cables to the panel. With the new SYSTIMAX 360 solution, CommScope has redefined enterprise network infrastructure performance from every angle. Under the innovative SYSTIMAX 360 design philosophy, engineering meets elegance, speed meets intel ligence, and copper meets fiber in a single, integrated customer solution that exceeds the standards for network infrastructure solutions.
Features
- Innovative rear cable manager makes cable routing and bundling easier
- Distribution modules can be snapped onto front of panel for easy front access to rear 110-type IDC termination field
- Allows all 24 cords to be routed in the same direction
- Meets 606 labeling standard
- Innovative 2-way mounting and terminating improving installation for limited rear access applications
- 1- to 24-port labeling and identification
- Available in 24-port configuration
- Features the elegant SYSTIMAX 360 design
- Designed for simplified administration with built-in cord retainer fingers
- Supports the deployment of InstaPATCH Cu pre-terminated copper solutions
Specification Description
Patch Panel
Diameter Over Dielectric: 0.030 - 0.046 Inch (0.762 - 1.168 mm)
Current Rating: 1.5 Amp At 68 deg F (1.5 Amp At 20 deg C)
Dielectric Withstand Voltage: 1500 Volt AC At 60 Hz (RMS Conductive Surface); 1000 Volt AC At 60 Hz (RMS Contact-To-Contact)
Insulation Resistance: 500 MOhm Minimum
Operating Temperature: 14 to 140 deg F (-10 to 60 deg C)
Relative Humidity: Upto 95% Non-Condensing
Storage Temperature: -40 to 158 deg F (-40 to70 deg C)
Intelligence Type: iPatch Ready
Total Port Quantity: 24
Cable Type: U/UTP (Unshielded)
Color: Cool Gray/Satin Chrome
Module Quantity: 4
Rack Type: EIA 19 Inch
Rack Unit: 2
Panel Style: Straight
Conductor Gauge: 22 AWG/24 AWG (Solid And Stranded)
Conductor Type: Solid/Stranded (7 Strands)
Material: High-Impact Flame Retardant Thermoplastic, Powder-Coated Steel
Outlet/Module Contact Plating: Precious Metals
Plug Insertion Life: 750 Times Minimum, IEC 60603-7 Compliant Test Plug
Plug Retention Force: 30 lbf (133 N) Minimum
Rear Termination Contact Plating: Nickel
Rear Termination Type: IDC
Wiring: T568A/T568B
Dimension: 3.50 Inch Height x 19 Inch Width x 10.50 Inch Depth (With Cable Management)
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
| Portfolio | SYSTIMAX |
| Product Type | RJ45 patch panel |
| Product Brand | GigaSPEED XL / PATCHMAX / SYSTIMAX 360 |
General Specifications
| ANSI/TIA Category | 6 |
| Cable Type | Unshielded |
| Color | Cool gray / Satin chrome |
| Conductor Type | Solid / Stranded |
| Intelligence Type | iPatch ready |
| Modules, quantity | 4 |
| Panel Style | Straight |
| Rack Type | EIA 19 in |
| Rack Units | 2 |
| Termination Type | IDC |
| Total Ports, quantity | 24 |
| Wiring | T568A / T568B |
Dimensions
| Height | 88.9 mm / 3.5 in |
| Width | 482.6 mm / 19 in |
| Depth, with cable management | 266.7 mm / 10.5 in |
| Compatible Diameter Over Dielectric, maximum | 1.168 mm / 0.046 in |
| Compatible Diameter Over Dielectric, minimum | 0.762 mm / 0.03 in |
| Compatible Conductor Gauge, solid | 22 AWG / 24 AWG |
| Compatible Conductor Gauge, stranded | 22 AWG / 24 AWG |
Electrical Specifications
| Current Rating at Temperature | 1.5 A @ 20 °C / 1.5 A @ 68 °F |
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac @ 60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac @ 60 Hz |
| Insulation Resistance, minimum | 500 mOhm |
| Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
Material Specifications
| Contact Plating Material | Precious metals |
| Material Type | High-impact, flame retardant, thermoplastic / Powder-coated steel |
| Termination Contact Plating | Nickel |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
| Plug Insertion Life, test plug | IEC 60603-7 compliant plug |
| Plug Retention Force, minimum | 133 N / 29.9 lbf |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL / cUL |
| Part Number | 760102244 |
|---|---|
| Weight (KG) | 1.200000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
