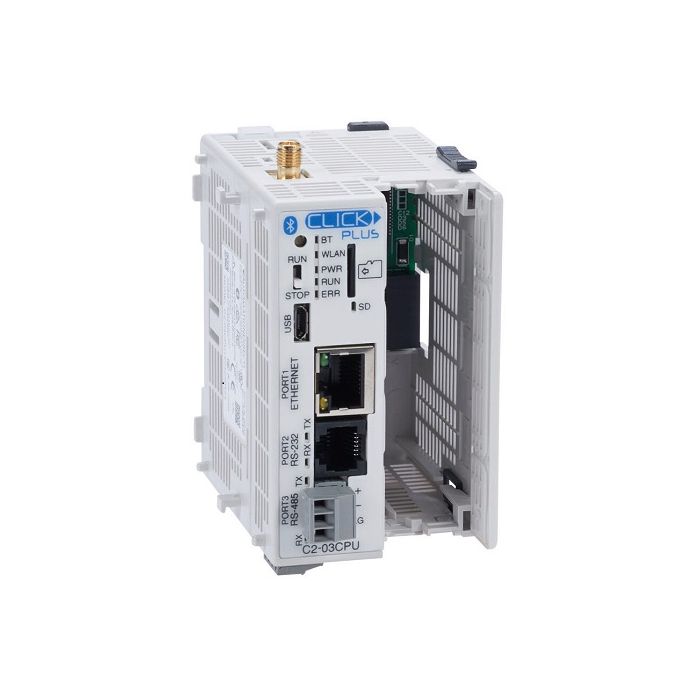

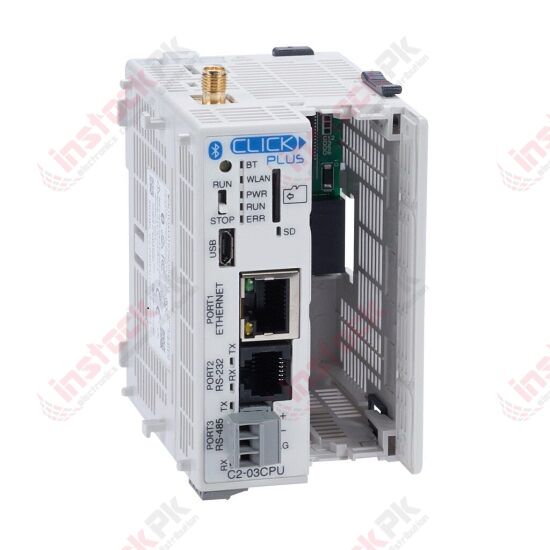

CLICK PLUS PLC, 24 VDC, WiFi LAN/Bluetooth, Ethernet, Serial, Micro-B - C2-03CPU
SKU
MD-01752
PKR83,500.00
Quantity: 0
CLICK PLUS PLC, 24 VDC required, WiFi LAN/Bluetooth, Ethernet, serial and micro-B USB ports, microSD card slot, no on-board I/O.
- Buy 3 for PKR79,325.00 each and save 5%
- Buy 10 for PKR76,820.00 each and save 8%
Category: Programmable Logic Array PLC
DC-powered Koyo CLICK PLC PLUS CPU, no on-board I/O
By itself, a powered CLICK CPU unit can function as a complete PLC system. The unit features several combinations for I/O types. For expansion, 12 option modules, are available for system configuration, up to 142 I/O.
All Click CPUs support 8K steps of Flash EEPROM program memory and 8K words of data memory.
C2-03CPU specifics:
- no on-board I/O
- WIRELESS/WIRED CPU
- Data logging (microSD support)
- 1 Ethernet communication port
- 1 RS232C communication port
- RS-232 and RS485 serial ports
- Wi-Fi with Bluetooth
- microB-USB
- Built-in Real Time Clock/Calendar
Features:
- The number of instructions has been reduced to 21 through the creation of very powerful instructions for math and data manipulation.
- The single math instruction includes the following functions:
Divide, Multiply, Subtract, Add, Sine, Cosine, Tangent, ArcSine, ArcCosine, ArcTangent, Exponent, Log (Base 10), Square Root, Log (Natural), Summation, Radians, Degrees, Pi, Modulo
Calculations are entered as formulas:
PI*(DS2^2)+(DS3*SQRT(DF5))+(DS7 MOD DS8)
- The single math instruction includes the following functions:
- Subroutines, For/Next loops
- Full control of sending and receiving data through serial communication port using Modbus or ASCII protocol
- Full control of sending and receiving data through Ethernet communication port using Modbus TCP protocol
- Removable terminal block
| Technical Attributes | |
|---|---|
| Brand | CLICK PLUS |
| Item | PLC |
| Total Memory | 8k words |
| Ladder Memory | 8k steps |
| User Data Memory | 16 KB |
| Removable Media Type | MicroSD card slot |
| Programming Language | Ladder |
| Programming Software | CLICK programming software v3.0 or later and CLICK CPU firmware v3.0 or later |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Mobile App Enabled | IOS/Android CLICK App |
| Real Time Clock/Calendar | Yes |
| Retentive Memory | Yes |
| Battery Backup | Yes |
| Maximum Expansion Modules Allowed | 8 |
| External Power Requirement | 24 VDC |
| Maximum Number of PID Loops | 8 |
| Additional Information | Purchase (D0-MC-BAT) backup battery separately |
What's in the Box
1x 4 postion terminal block~attached to PLC unit
1x Extention port cover~attached to PLC unit
1x Antenna Port Cover
1x CLICK PLUS Series CPU
| Part Number | C2-03CPU |
|---|---|
| Manufacturer | Koyo Electronics Industries |
| Weight (KG) | 0.200000 |
| Product Availability | Available on Demand |
