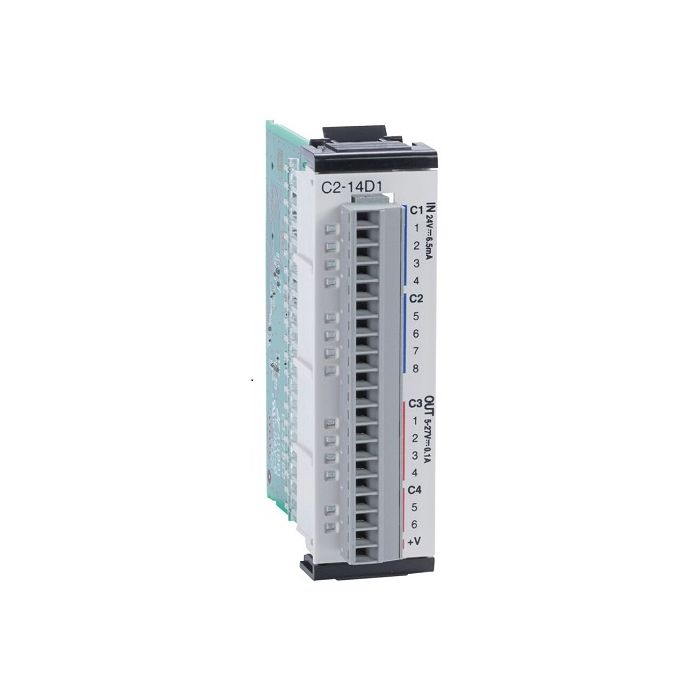

CLICK: CLICK PLUS Discrete Combo Module, Input: 8, Output: 6 - C2-14D1
PKR 24,500.00
SKU
MD-01755
CLICK PLUS discrete combo module, Input: 8-point, 24 VDC, sinking/sourcing, Output: 6-point, 5-27 VDC, sinking, 0.1A/point. Removable terminal block included.
Specifications
| Technical Attributes | |
|---|---|
| Brand | CLICK PLUS |
| Item | Combo module |
| I/O Module Type | Discrete |
| Number of Input Points | 8 |
| Nominal Input Voltage | 24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Number of Isolated Discrete Input Commons | 2 |
| Number of Points per Discrete Input Common | 4 |
| Number of Output Points | 6 |
| Nominal Output Voltage | 5-27 VDC |
| Discrete Output Type | Sinking |
| Load Current | 0.1A/point |
| Number of Isolated Discrete Output Commons | 2 |
| Number of Points per Discrete Output Common | 4/2 |
| Fuse Type | User-supplied external fuse |
| Number of High-Speed Capable Input Points | 8 |
| High-Speed Counter(s) |
|
| Interval Measurement |
|
| Duration Measurement |
|
| Frequency Measurement |
|
| Interrupt(s) |
|
| Table-Driven Input(s) |
|
| Includes | Removable terminal block |
| Programming Software | CLICK programming software v3.0 or later and CLICK CPU firmware v3.0 or later |
What's in the Box
1x CLICK PLUS Series Slot I/O Module
1x 20 position terminal block~attached to module
| Part Number | C2-14D1 |
|---|---|
| Manufacturer | Koyo Electronics Industries |
| Weight (KG) | 0.200000 |
| Product Availability | Available on Demand |
