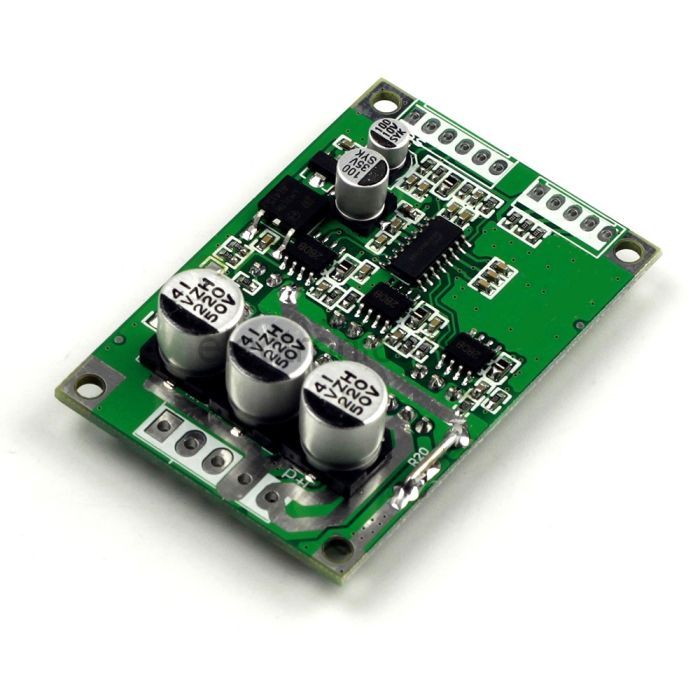

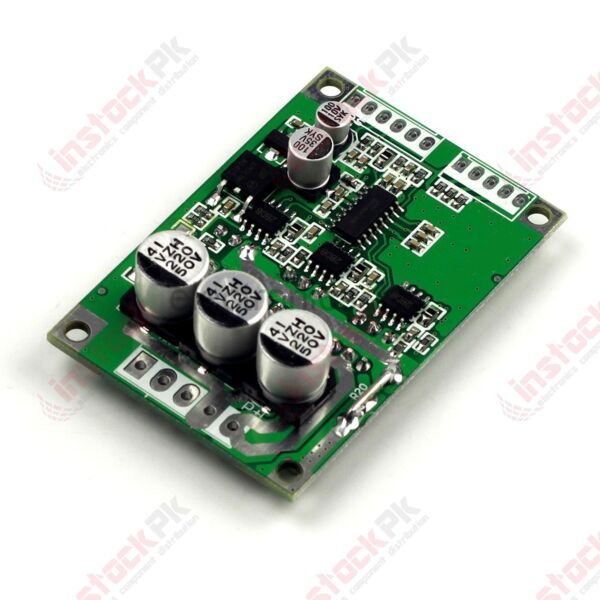

Hall Effect BLDC Brushless Motor Controller Driver Board 500W (DC 12V-36V) For Hall Motor
SKU
MD-00640
PKR5,250.00
Quantity: 10
Brushless Motor Controller Driver Board 500W (DC 12V-36V) For Hall Motor
- Buy 3 for PKR4,987.50 each and save 5%
- Buy 10 for PKR4,830.00 each and save 8%
- Buy 50 for PKR4,462.50 each and save 15%
Categories: Robotics, Parts & Acessories, Motor Drivers
FEATURES:
- DC brushless motor driver board.
- Operating voltage: DC 12V to 36V; operating current ≤15A.
- With speed regulation function, 0.1V-5V speed voltage.
- Stall protection, over-current protection, enable control, steering control and speed control signal.
SPECIFICATIONS:
- Operating Voltage: DC12-36V
- Operating Current: ≤15A
- Drive Power: ≤500W
- Speed Voltage: 0.1V-5V
- Operating Temperature: -40~85°C
- Humidity: ≤90%RH
- Stall Protection: Yes
- Enable Control: Yes
- Over-current Protection: Yes
- Steering Control: Yes
- Speed Control Signal: Yes
PIN CONFIGURATIONS:
Power terminal OUT:
- VCC (positive power supply)
- GND (negative one)
- MC (motor phases W)
- MB (motor phases V)
- MA (motor phases U)
SET for the control side:
- GND control terminal ground
- VR the governor end 0-5V(corresponding to 10% of motor speed - 100%)
- ZF reversing control(connected to 5V or ground can change the motor rotation direction)
- M tachometer pulse output(depending on the number of motor poles corresponding to the number of pulses per revolution of the output number)
- EL enable control terminal(connected to 5V or ground running then 5V, grounding the motor stops)
HALL for the Hall terminals:
- 5V, Hall power positive
- Ha, Hall signal
- Hb, Hall signal
- Hc, Hall signal
- GND, Hall negative
Control terminal for SET:
- The motor speed control wiring methods:Available potentiometer system speed can also be controlled by MCU Control, when the potentiometer control wiring, the potentiometer middle pin is connected to VR speed port, potentiometer connected to both ends of 5V and GND terminal voltage more high speed faster.
Hall Signal inputs for Hall:
- Wiring diagram is shown, one corresponding to the HA, HB, HC and on the motor, 5V power supply connected to the motor Hall signals positive, GND power supply negative signal to motor Hall.
- Note:Due to different motor manufacturers to make the Hall of Hall line order does not necessairly follow the line on the board to match the sequence, need to be adjusted, please parents who pay atteneion.If the line sequence is wrong, does not boot properly, current, or start other phenomena not open, forced to use the drive plate will burn.
PACKAGE INCLUDES:
- 1 X Brushless Motor Controller Driver Board 500W (DC 12V-36V) For Hall Motor
