Bodine Electric: 42A5-FX Parallel Shaft DC Gearmotor - 5076
SKU
MD-01510
PKRÂ 0.00

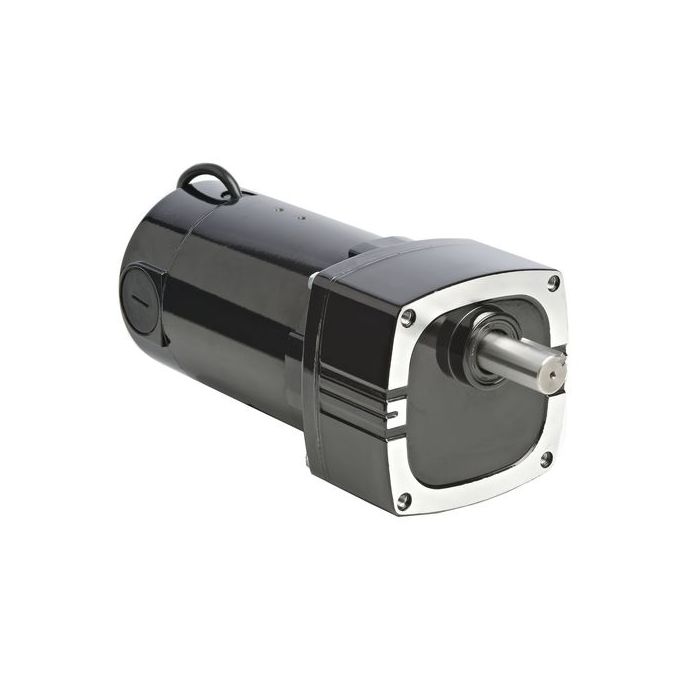

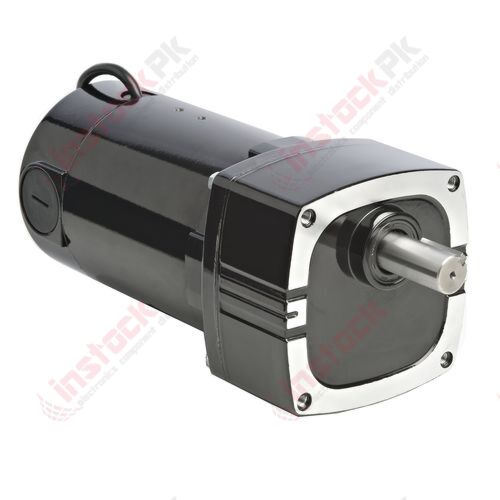

The 42A5-FX series is a range of Parallel Shaft DC Gearmotor from Pacesetter. It has a 42A Motor that delivers a high starting torque, adjustable speed, and proper linear speed torque. This gear motor is enclosed in an unvented gear housing for various horizontal mounting, and has industrial lip type seals on the motor and output shafts. It has a needle bearing for enhanced radial load capacity and a long service life. The gears are lubricated with a high-performance synthetic lubricant, and is made of hardened steel for a noiseless operation and a high output to size ratio.
📦 Pre-Order Queue:
0 Units
âš Available on Backorder (In 15-30 business days)
Category: Gear Motor
FEATURES
- 42A Motor provides high starting torque, adjustable speed, and linear speed torque characteristics.
- Unvented gearhousing for universal horizontal mounting.
- Industrial lip type seals on motor and output shafts.
- Needle bearing on output shaft for increased radial load capacity and long life.
- Permanently lubricated gearing utilizes high-performance synthetic lubricant.
- Hardened steel helical gearing for quietness and high output to size ratio.
SPECIFICATIONS
| Speed (rpm) @ 130V | – |
| Speed (rpm) @ 90V | – |
| Speed (rpm) @ 24V | 42 |
| Speed (rpm) @ 12V | 17 |
| Motor HP @ 130V | – |
| Motor HP @ 90V | – |
| Motor HP @ 24V | 3/8 |
| Motor HP @ 12V | 1/7 |
| Amps @ 130/90V | – |
| Amps @ 24/12V | 14.0 |
| Gear Ratio | 60 |
| Rated Torque (lb-in) @ 130V | – |
| Rated Torque (lb-in) @ 90V | – |
| Rated Torque (lb-in) @ 24V | 350 |
| Rated Torque (lb-in) @ 12V | 350 |
| Radial Load (lbs) | 200 |
| Length XH (inch) | 9.323 |
| Weight (lbs) | 15.4 |
| Product Type | 42A5FEPM-FX3 |
| Winding | 12/24V |
| Accessory Shaft | YES |
| HPDecimal | 0.1428 |
| Connection Diagram | 07410101 |
Optional Accessories
L-Bracket Kit for E, F and FX gearmotors [model 0969]IP-44 kit for 42A motors [model 0978]
33A/42A mounting adaptor for encoders and brakes [model 0992]
Adaptor plate kit for E, F, W, WX and FX gearmotors [model 0995]
CAD Drawings
Wiring Diagram
Safety Data Sheets
| Part Number | 5076 |
|---|---|
| Weight (KG) | 6.500000 |
| Manufacturer | Bodine Electric |
| Product Availability | Available on Demand |
| Voltage (Min) | NA |
| Voltage (Max) | NA |
| Temperature Range (Min) | NA |
| Temperature Range (Max) | NA |
| Step Per Revolution(Min) | NA |
| Step Per Revolution (Max) | NA |
| Torque | NA |
| Motor Type | NA |
| Motor Step Angle | NA |
