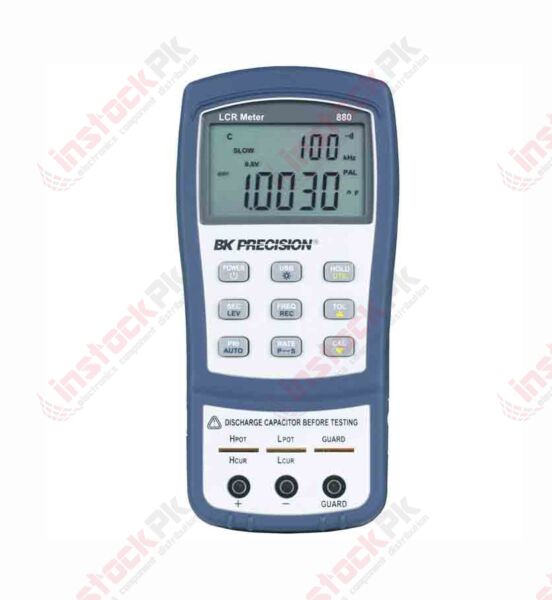

BK PRECISION Dual Display Handheld LCR Meter BK880 (100Hz~100kHz)

The 878B, 879B, and 880 40,000-count handheld LCR meters measure inductance, capacitance, and resistance quickly and precisely. The 879B and 880 also measures impedance, Theta, DCR, and ESR. Additionally, the 880 offers capabilities typically only found in bench LCR meters such as a 4-terminal configuration, basic measurement accuracy up to 0.1%, test frequencies up to 100 kHz,  selectable test signal levels and measurement rate.Fast auto ranging and quick measurement configuration such as measurement parameter and test frequency selection make these meters very simple to operate. The meter also includes handy functions such as data hold, Min/Max/Average recording, tolerance sorting, and relative mode.

Measurement data can continuously transfer to a PC via the meter's mini USB interface, using either the provided data logging software or SCPI commands sent from a custom program.

FEATURES:

1. 40,000 counts resolution on primary and 10,000 counts resolution on secondary display
2. L, C, R, and Z primary measurements
3. Automatic calculation of secondary parameters D, Q, Theta, ESR and DCR
4. Accuracy up to 0.1% and selectable test frequencies up to 100 kHz
5. Fast auto range design for rapid, easy component measurements
6. Auto detect mode for automatic component type identification and measurement type selection
7. Relative mode
8. Visible and audible tolerance mode
9. Backlit display
10. Data Hold and Min/Max/Average recording
11. USB (Virtual COM) interface
12. SCPI compliant commands for remote communication
13. Software for datalogging and front panel emulation available as free download
14. Configurable power-up-states

RELATED DOCUMENTS:

1. Datasheet.
2. User Manual.

APPLICATIONS:

1. Passive component troubleshooting
2. Electronic assembly
3. Quality control (component sorting)

PACKAGE INCLUDES:

1. 1 X BK PRECISION Dual Display Handheld LCR Meter BK880 (100Hz~100kHz)li>
