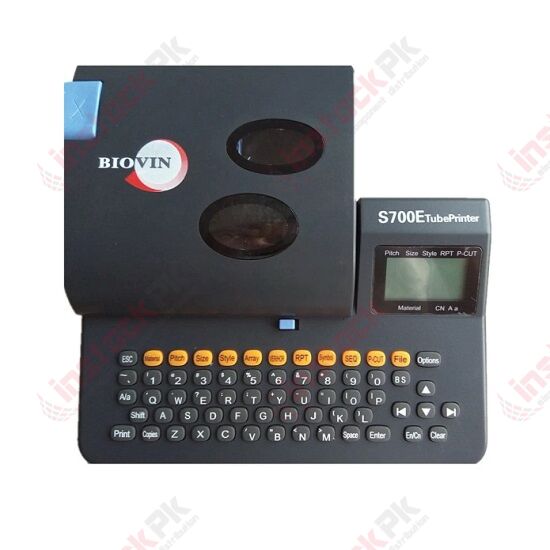

Biovin: Electronic Lettering Machine For PVC, Heat Shrink Tube Printer - S700E
SKU
MD-01749
PKR225,000.00
Quantity: 0
This product is replaced with newer model, Check Below Link
Biovin: Electronic Lettering Machine For PVC, Heat Shrink Tube Printer - S900E
Category: Consumer Electronics
Product Features
- Printing speed 25mm per second.
- With half-cut operation able to print 35 pcs of 20mm length tube per minute.
- 40 pcs of 20mm length tube per minute.
- Maximum number of characters input 1000 characters. 99 blocks
- High efficiency batch printing
- Resolution 300dpi
- 300 dpi high resolution printing produce clear, sharp and durable lettering
- Build-in Storage 1GB
- Large build-in storage memory. Store up to 128 files
- Adjustable Cutting Depth Adjustable cutting Depth enhance the life spend of half cutter unit
- Thermal Head Special coating enhance the life spend of thermal head
- Languages English & Chinese languages switching by a single button.
| PC Interface | S700E can be connected to PC by USB cable. Equipped with application software "Biovin PC Editor" Data prepared on PC can be down loaded to the Lettering Machine for printing tubes and tapes |
| Output Rate | Printing speed 25mm per second. With half-cut operation able to print 35 pcs of 20mm length tube per minute. 40 pcs of 20mm length tube per minute. Maximum number of characters input 1000 characters. 99 blocks High efficiency batch printing |
| Resolution | 300dpi 300 dpi high resolution printing produce clear, sharp and durable lettering |
| Build-in Storage | 1GB Large build-in storage memory. Store up to 128 files |
| Adjustable Cutting Depth | Adjustable cutting Depth enhance the life spend of half cutter unit |
| Thermal Head | Special coating enhance the life spend of thermal head |
| Language | English & Chinese languages switching by a single button. |
Specification
| PC Interface | S700E by USB cable |
| Marking Material | PVC Tube, Tape, Shrinkable Tube |
| Printing Method | Thermal Transfer |
| Resolution | 300dpi |
| Applicable tube size | 2mm to 6 mm PVC Tube |
| Printing Rate | 25mm/sec |
| PVC tube Printing speed | 35 pcs / m (20mm length) |
| Tape printing speed | 40 pcs / m (20mm length) |
| LCD Display | Back-lit , 2 lines display |
| Input languages | English , simplify Chinese |
| Font sizes | 6 Sizes |
| Internal Memory | 1 GB, 128 files |
| Tube Cutting | Auto : half cut, manual : full cut |
| Ink Ribbon | Exclusive Biovin cassettes : Black & white |
| Power Supply | DC12V, 3.5A |
| Dimensions | 290 (W) x 270 (L) X 100 (H) mm |
| Environment temp | 15°C ~ 35°C |
Consumable for S700E
Original ribbon
- Printer Ribbon RS-80B black 80 m / Roll 10 Roll / Boxs
- Printer Ribbon RS-80W White 80m / Roll 10 Roll / Boxs
Original Label Tape
- Label Strip LS-06W white 6mm * 8m / Roll 10 Roll / Boxs
- Label Strip LS-06Y Yellow 6mm * 8m / Roll 10 Roll / Boxs
- Label Strip LS-06S Silver 6mm * 8m / Roll 10 Roll / Boxs
- Label Strip LS-09W White 9mm * 8m / Roll 10 Roll / Boxs
- Label Strip LS-09W Yellow 9mm * 8m / Roll 10 Roll / Boxs
- Label Tape LS-09S Silver 9mm * 8m / Roll 10 Roll / Boxs
- Label strip LS-12W white 12mm * 8m / Roll 10 Roll / Boxs
- Label Strip LS-12Y Yellow 12mm * 8m / Roll 10 Roll / Boxs
- Label Strip LS-12S Silver 12mm * 8m / Roll 10 Roll / Boxs
Cutting Unit: KS-01
PVC Tube
- Pvc Tube 0.5 Square Inner Diameter 1.8mm 1.1 / KG 120m / Roll
- Pvc Tube 0.75 square inside diameter 2.2mm 1.1 / KG 105m / Roll
- Pvc Tube 1.0 Square Inner Diameter 2.8mm 1.1 / KG 95m / Roll
- Pvc Tube 1.5 Square Inner Diameter 3.5mm 1.1 / KG 85m / Roll
- Pvc Tube 2.0 Square Inner Diameter 3.8mm 1.1 / KG 80m / Roll
- Pvc Tube 2.5 Square Inner Diameter 4.0mm 1.1 / KG 70m / Roll
- Pvc Tube 4.0 Square Inner Diameter 4.6mm 1.1 / KG 60m / Roll
- Pvc Tube 6.0 Square Inner Diameter 5.2mm 1.1 / KG 50m / Roll
| Part Number | S700E |
|---|---|
| Manufacturer | Biovin |
| Weight (KG) | 6.500000 |
| Packing Unit | 1 Piece |
| Product Availability | Available on Demand |
