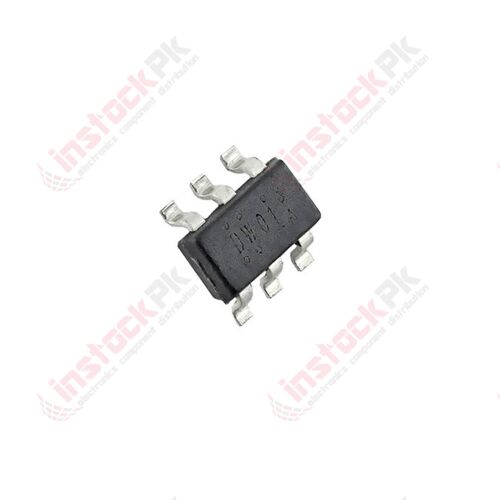

Lithium Battery Protection IC - DW01A

SKU
MD-00495
PKR20.00
Quantity: 982
Battery Protection IC DW01A
  • Buy 25 for PKR16.00 each and save 20%
  • Buy 100 for PKR13.00 each and save 35%
  • Buy 1000 for PKR11.00 each and save 45%

The DW01Abattery protection IC is designed to protect lithium-ion/polymer battery from damage or degrading the lifetime due to overcharge, over discharge, and/or overcurrent for one-cell lithium-ion/polymer battery powered systems, such as cellular phones.The ultra-small package and less required external components make it ideal to integrate the DW01A into the limited space of battery pack. The accurate ±50mV overcharging detection voltage ensures safe and full utilization charging. The very low standby current drains little current from the cell while in storage.

SPECIFICATIONS:

  1. Reduction in Board Size due to Miniature Package SOT-23-6.
  2. Ultra-Low Quiescent Current at 3μA (Vcc=3.6V).
  3. Temperature Range: -40°C~+85°C
  4. Overcharge Protection: 4.3V± 50mV

PIN CONFIGURATIONS:

Pin configurations

RELATED DOCUMENTS:

  1. Battery Protection IC DW01A  Datasheet.

PACKAGE INCLUDES:

  1. 1 X Battery Protection IC DW01A



Part Number DW01A
Weight (KG) 0.020000
Manufacturer Made in China
Product Availability In Stock
Model Number DW01A
Voltage (Min) NA
Voltage (Max) 3.6V
Power NA
Current (A) NA
Temperature Range (Min) -40°C
Temperature Range (Max) NA
Memory NA
Num of Pin's 6
SMD_Package SOT-23-6
