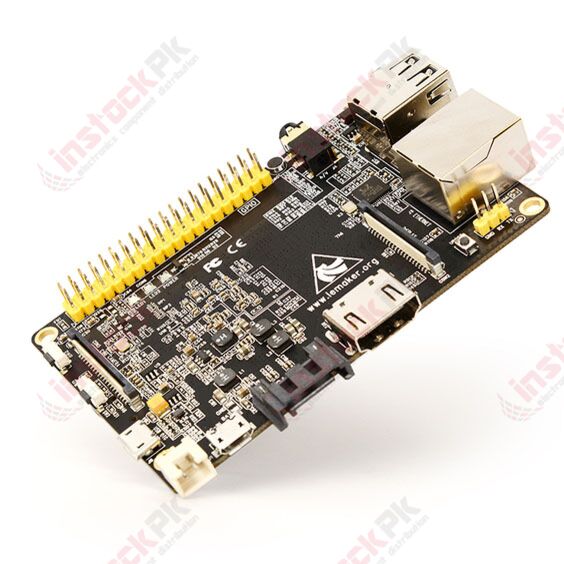

Banana Pro-1GHz ARM A7 Dual-Core Processor Board

Banana Pro is an upgrade of Banana Pi which applies to a wide range of fields. Such as: low-cost mini computer for education, multimedia applications, scratch, arduino, game emulator, home server, robot etc. Banana Pro has an excellent compatibility with multiply software supports. Generally speaking, all main operating systems based on Linux can run on Banana Pro, with the version of Lubuntu, Android,Debian, Bananian, Berryboot, OpenSuse, Scratch, Fedora, Gentoo, Open MediaVault, OpenWRT. Banana Pro also supports BSD system.

FEATURES:

1. Low-level peripherals : 40 Pins Header,28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, CAN, I2S, SPDIF, LRADC, ADC, LINE-IN,FM-IN,HP-IN.
2. On board Network: 10/100/1000Mbps ethernet (Realtek RTL8211E/D)
3. Wifi Module: WiFi 802.11 b/g/n
4. Bluetooth: Optional
5. On board Storage: MicroSD (TF) card，SATA 2.0
6. Display: Supports multi-channel HD display
7. HDMI 1.4 (Type A - full)
8. LVDS/RGB/CPU display interface (DSI) for raw LCD panels
9. Composite video (PAL and NTSC) (via 3.5 mm TRRS jack shared with audio out)
10. 11 HDMI resolutions from 640×480 to 1920×1080 plus various PAL and NTSC standards.
11. Audio outputs: HDMI,analog audio (via 3.5 mm TRRS jack shared with composite video out),I2S audio (also potentially for audio input)
12. USB: 2 USB 2.0 host, 1 USB 2.0 OTG (all direct from A20 chip)

SPECIFICATIONS:

1. SOC:Allwinner® A20(sun 7i)
2. CPU:ARM® Cortex™-A7 Dual-Core1GHz (ARM v7 instruction set)
3. GPU:Mali400MP2 Complies with OpenGL ES 2.0/1.1 (hardware acceleration support)
4. SDRAM:1GB DDR3 (shared with GPU)
5. Power: 5V @ 2A via MicroUSB (DC in Only) and/or MicroUSB (OTG)
6. PMU:AXP209

RELATED DOCUMENTS:

1. Banana Pro 1GHz ARM A7 Dual-Core Processor Board Tutorial

PACKAGE INCLUDES:

1. 1 X Banana Pro 1GHz ARM A7 Dual-Core Processor Board
