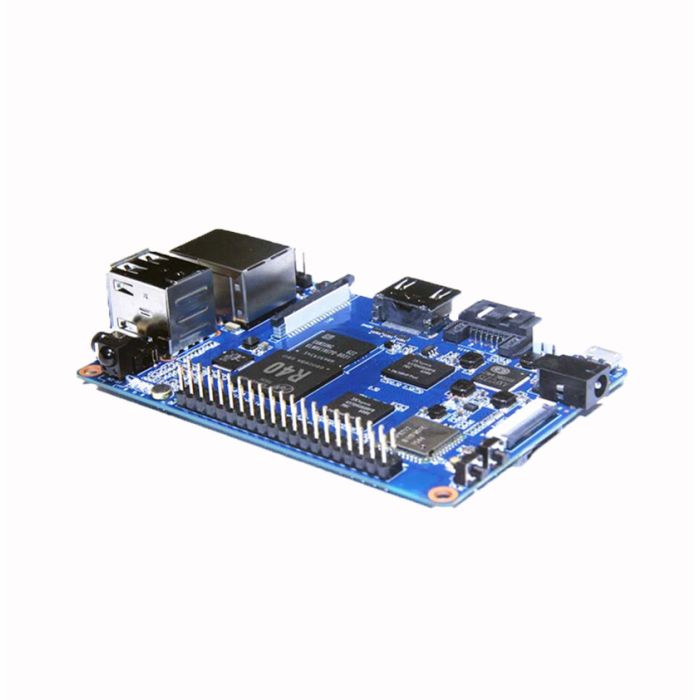

Banana Pi M2 Ultra R40 Quad-Core 2GB RAM Board With Case & Power Supply

Banana Pi BPI-M2 Ultra is a quad-core mini single board computer built with Allwinner R40 SoC. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT. On the ports side, the BPI-M2 Ultra has 2 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, a DC power port, and last but not least, a SATA port..

Also being a member of the Banana Pi family, the M2 Ultra is a direct upgrade from the Banana Pi M1/M1+ that support SATA from the SoC. The SATA performance on the R40 is fitting for media related projects such as storage servers. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

FEATURES:

1. Quad Core ARM Cortex A7 CPU. R40.
2. 2GB DDR3 SDRAM.
3. 8 GB eMMC storage.
4. WiFi (AP6212) & Bluetooth onboard.
5. SATA Interface.

SPECIFICATIONS:

1. CPU: quad-core cortex -A7 R40
2. GPU: MALI-400 MP2 @ 500MHz
3. Memory: 2GB DDR3 SDRAM (shared with GPU)
4. Storage Support: MicroSD Card(up to 64GB)/eMMC(8GB onboard)SATA
5. Onboard Network: 10/100/1000Mbps ethernet (Realtek RTL8211E/D)
6. WiFi: 802.11 b/g/n (AP6212)
7. Bluetooth: BT4.0 (AP6212)
8. Video In: CSI connector that supports 8-bit YUV422 CMOS sensor CSI, CCIR656 protocol for NTSC and PAL, 5MP camera, 1080p video 30Hz
9. Video Out: HDMI 1.4 1080P60 MIPI DSI for RAW LCD panels
10. Audio Out: 3.5 mm Jack and HDMI
11. Audio In: On board microphone
12. Power Source: 5V 2A DC port
13. USB Ports: 3x USB 2.0, USB OTG(Micro USB)
14. Buttons: Reset button, Power button, U-boot button
15. GPIO: 40 Pins: GPIO, UART, I2C bus, I2S bus, SPI bus, PWN, +3.3v, +5v, ground
16. LED: Power status Led and RJ45 Led
17. IR: Onboard IR receiver
18. OS: Android and Linux etc.OS
19. Acrylic Case
20. Power Supply 5V/2A

PACKAGE INCLUDES:

1. 1 X Banana Pi M2 Ultra R40 Quad-Core 2GB RAM Board With Case & Power Supply
