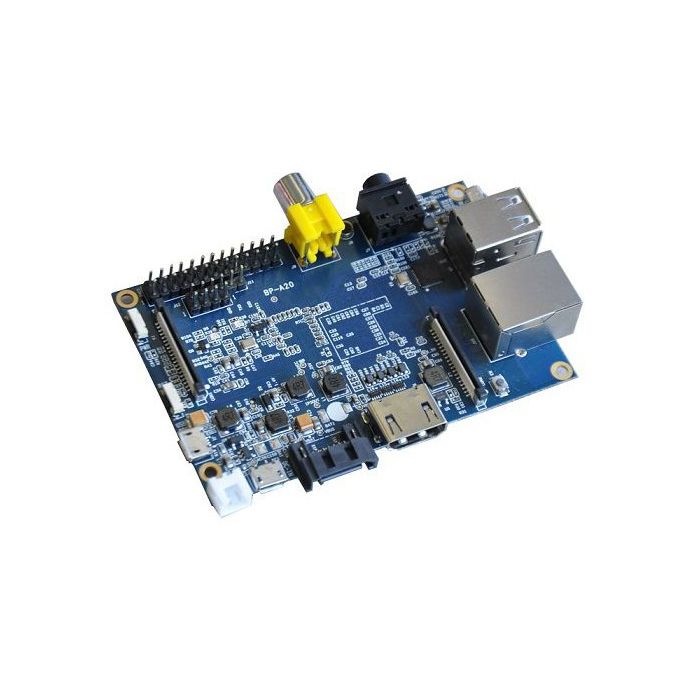

Banana Pi 1G DDR3 RAM-1GHz ARM A20 Dual-Core Processor Board

Banana Pi is a single-board computer made in China. It can run Android, Ubuntu and Debian. Raspbian can be run, though the CPU complies with the requirements of the Debian armph port. It uses the Allwinner A20 SoC and as such is mostly covered by the linux-sunxi port. The board layout is very similar to the Raspberry PI board, though it’s about 10% larger and the relative spacing of some connectors varies.

Specifications:

1. CPU: A20 ARM Cortex™-A7 Dual-Core
2. GPU: ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
3. Memory (SDRAM): 1GB DDR3 (shared with GPU)
4. Onboard Storage: SD (Max. 64GB) / MMC card slot UP to 2T on 2.5 SATA disk
5. Onboard Network: 10/100/1000 Ethernet RJ45,optional WIFI
6. Video Input: A CSI input connector allows for the connection of a designed camera module
7. Video Outputs: HDMI, CVBS , LVDS/RGB
8. Audio Output: 3.5 mm Jack and HDMI
9. Power Source: 5 volt via MicroUSB(DC In Only) and/or MicroUSB (OTG)
10. USB 2.0 Ports: 2 (direct from Allwinner A20 chip)
11. Reset button: Next to MicroUSB connector
12. Power button: Next to Reset buttonBoot button (Optional): Behind HDMI connector
13. GPIO(2X13): pin GPIO,UART,I2C bus,SPI bus with two chip selects,CAN bus,ADC,PWM,+3.3v,+5v,ground.
14. LED: Power Key & RJ45
15. Remote: IR (Optional)
16. OS: Android 4.2,Firefox OS and Linux etc. OS
17. Product size: 92 mm × 60mm

 Diagrams:

Documents:

1. Product Support Page
2. Quick Start Guide Link
3. OS Images Link
4. Android OS Installation Guide
