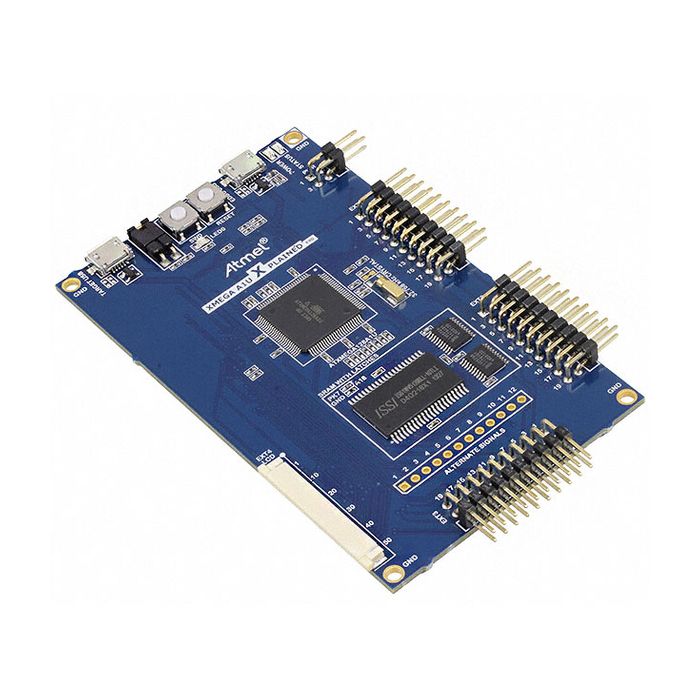

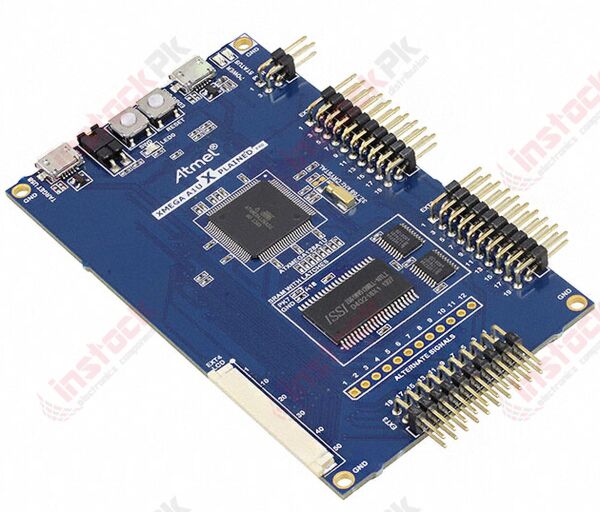

Atmel ATXMEGAA1U-XPRO Development Board

The Atmel XMEGA A1U Xplained Pro evaluation kit is a hardware platform to evaluate the Atmel ATxmega128A1U.The kit offers a set of features that enables the ATxmega128A1U user to get started using the XMEGA peripherals right away and to get an understanding of how to integrate the device in their own design.

FEATURES:

1. Atmel ATxmega128A1U microcontroller
2. USB interface
3. Programming and debugging on board XMEGA® through PDI
4. Virtual COM-port interface to target via UART
5. Atmel Data Gateway Interface (DGI) to target via USART and TWI
6. Four GPIOs connected to target for code instrumentation
7. Two mechanical buttons (user and reset button)
8. One user LED
9. Three extension headers
10. Xplained Pro LCD extension connector

SPECIFICATIONS:

1. External power
2. Embedded debugger USB
3. Target USB
4. 32kHz crystal
5. External 512KB SRAM
6. USB interface, device mode

RELATED DOCUMENTS:

1. Atmel ATXMEGAA1U-XPRO Development Board User Manual.

PACKAGE INCLUDES:

1. 1 X Atmel ATXMEGAA1U-XPRO Development Board
