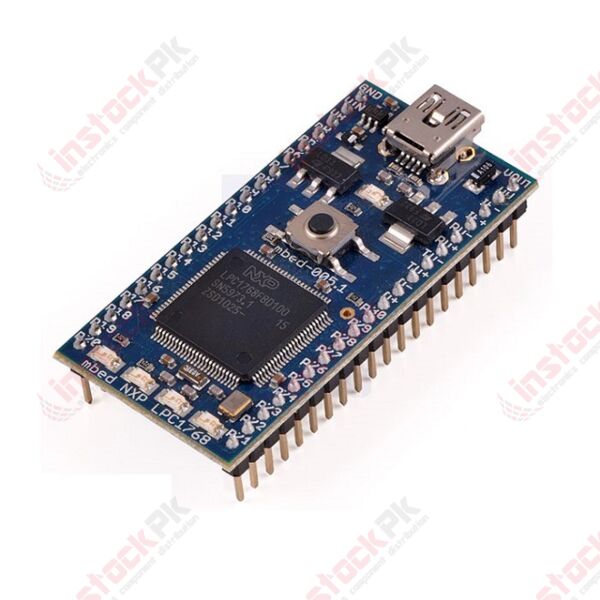

ARM mBed: ARM Cortex-M3 NXP LPC1768 Microcontroller Card - 32 Bit - 96 Mhz - LCMA002

SKU
MD-01880
PKR19,300.00
Quantity: 2

The mbed NXP LPC1768 Microcontroller in particular is designed for prototyping all sorts of devices, especially those including Ethernet, USB, and the flexibility of lots of peripheral interfaces and FLASH memory. It is packaged as a small DIP form-factor for prototyping with through-hole PCBs, stripboard and breadboard, and includes a built-in USB FLASH programmer.

The mbed Microcontrollers are a series of ARM microcontroller development boards designed for rapid prototyping.

The mbed NXP LPC1768 Microcontroller in particular is designed for prototyping all sorts of devices, especially those including Ethernet, USB, and the flexibility of lots of peripheral interfaces and FLASH memory. It is packaged as a small DIP form-factor for prototyping with through-hole PCBs, stripboard and breadboard, and includes a built-in USB FLASH programmer.

https://os.mbed.com/media/platforms/lpc1768_pinout.png

It is based on the NXP LPC1768, with a 32-bit ARM Cortex-M3 core running at 96MHz. It includes 512KB FLASH, 32KB RAM and lots of interfaces including built-in Ethernet, USB Host and Device, CAN, SPI, I2C, ADC, DAC, PWM and other I/O interfaces. The pinout above shows the commonly used interfaces and their locations. Note that all the numbered pins (p5-p30) can also be used as DigitalIn and DigitalOut interfaces.

The mbed Microcontrollers provide experienced embedded developers a powerful and productive platform for building proof-of-concepts. For developers new to 32-bit microcontrollers, mbed provides an accessible prototyping solution to get projects built with the backing of libraries, resources and support shared in the mbed community.

Hello World!

Import program

HelloWorld - main.cpp

#include "mbed.h"

DigitalOut myled(LED1);

int main() {
    while(1) {
        myled = 1;
        wait(0.2);
        myled = 0;
        wait(0.2);
    }
}

Features

  • NXP LPC1768 MCU
    • High performance ARM® Cortex™-M3 Core
    • 96MHz, 32KB RAM, 512KB FLASH
    • Ethernet, USB Host/Device, 2xSPI, 2xI2C, 3xUART, CAN, 6xPWM, 6xADC, GPIO
  • Prototyping form-factor
    • 40-pin 0.1" pitch DIP package, 54x26mm
    • 5V USB or 4.5-9V supply
    • Built-in USB drag 'n' drop FLASH programmer
  • mbed.org Developer Website
    • Lightweight Online Compiler
    • High level C/C++ SDK
    • Cookbook of published libraries and projects

The mbed NXP LPC1768 is one of a range of mbed Microcontrollers packaged as a small 40-pin DIP, 0.1-inch pitch form-factor making it convenient for prototyping with solderless breadboard, stripboard, and through-hole PCBs. It includes a built-in USB programming interface that is as simple as using a USB Flash Drive. Plug it in, drop on an ARM program binary, and its up and running!

Firmware

Make sure you have updated your firmware to the latest revision.

  • mbed Interface Firmware

Schematics and Data Sheets

mbed NXP LPC1768 Microcontroller

  • mbed NXP LPC1768 Schematic
  • mbed NXP LPC1768 Microcontroller Flyer

NXP LPC176x MCU

  • NXP LPC1768 Homepage
  • NXP LPC176x User Manual
  • NXP LPC176x Data Sheet

HAL

The mbed interface semihosting is disconnected as part of going to sleep, and can not be restored. Flash re-programming and the USB serial port will remain active, but the mbed program will no longer be able to access the LocalFileSystem.

Part Number LCMA002
Manufacturer ARM
Weight (KG) 0.050000
Packing Unit 1pc
Product Availability In Stock
