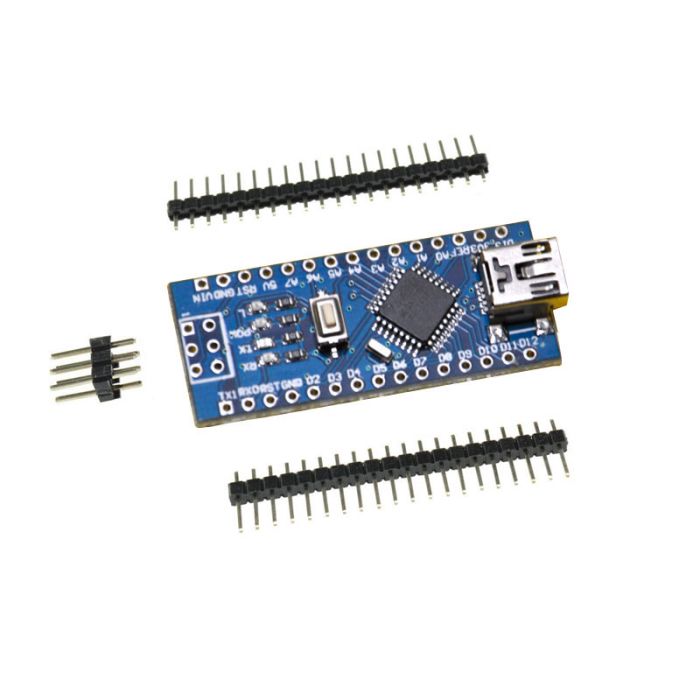

Arduino Nano V3.0 ATmega328P with CP2102/CH340

SKU
MD-00106
As low as PKR1,080.00
Quantity: 0

Arduino Nano is a surface mount breadboard embedded version with integrated USB. It is a smallest, complete, and breadboard friendly. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper. Physically, it is missing power jack. The Nano is automatically sense and switch to the higher potential source of power, there is no need for the power select jumper.

 Arduino Nano is a surface mount breadboard embedded version with integrated USB. It is a smallest, complete, and breadboard friendly. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper. Physically, it is missing power jack. The Nano is automatically sense and switch to the higher potential source of power, there is no need for the power select jumper.

Nano’s got the breadboard-ability of the Boarduino and the Mini+USB with smaller footprint than either, so users have more breadboard space. It’s got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other).

 FEATURES:

  1.  Automatic reset during program download
  2.  Power OK blue LED
  3.  Green (TX), red (RX) and orange (L) LED
  4. Auto sensing/switching power input
  5. Small mini-B USB for programming and serial monitor
  6. ICSP header for direct program download
  7.  Standard 0.1” spacing DIP (breadboard friendly)
  8. Manual reset switch

 SPECIFICATIONS:

  1. Microcontroller : Atmel ATmega 328
  2. Operating Voltage(logic level) : 5V
  3. Input Voltage (recommended) : 7-12 V
  4. Input Voltage (limits)  : 6-20 V
  5. Digital I/O Pins  : 14 (of which 6 provide PWM output)
  6. Flash Memory  : 32 KB (of which 2KB used by bootloader)
  7. SRAM  : 2 KB
  8. EEPROM   :  1 KB
  9. Clock Speed  : 16 MHz
  10. Dimensions   : 0.70” x 1.70”

RELATED DOCUMENTS:

  1. IC CH340G Datasheet here
  2. IC Atmel ATmega 328 Datasheet here

 PACKAGE INCLUDES:
  1. 1 x Mini USB Nano V3.0 ATmega328 5V 16M Micro-controller board For Arduino








Part Number NA
Manufacturer Arduino
Weight (KG) 0.015000
Product Availability In Stock
