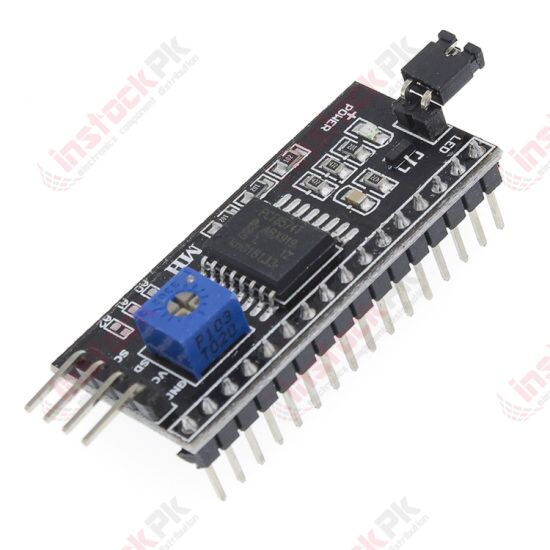

Arduino IIC/I2C Serial Interface Adapter Board Module For Arduino 1602 LCD

This is a RoHS compliant I2C Serial LCD Daughter board that can be connected to a standard HD44780compatible 16x2 or 20x4 Character Display Module that supports 4 bit mode. All Character Modules sold on our site support 4 bit mode, and nearly all commercially available 16x2 and 20x4 line character modules support it too.

FEATURES:

1. Arduino 1602 I2C interface 4-wire 1602 screen
2. IO port of Arduino control board  is only 20,so IO ports is not enough for many sensor, SD card, relay modules.
3. The original 1602 screen need 7 IO ports to drive up, and this module can save 5 IO ports.
4. This module is without LCD 1602.

SPECIFICATIONS:

1. Supply voltage: +5 V
2. Supports the I2C protocol
3. With backlight and contrast adjustment potentiometer
4. 4 Line Output easier

RELATED DOCUMENTS:

1.  Arduino IIC/I2C Serial Interface Adapter Board Module Instructions.

PACKAGE INCLUDES:

1.  1 X Arduino IIC/I2C Serial Interface Adapter Board Module For Arduino 1602 LCD
