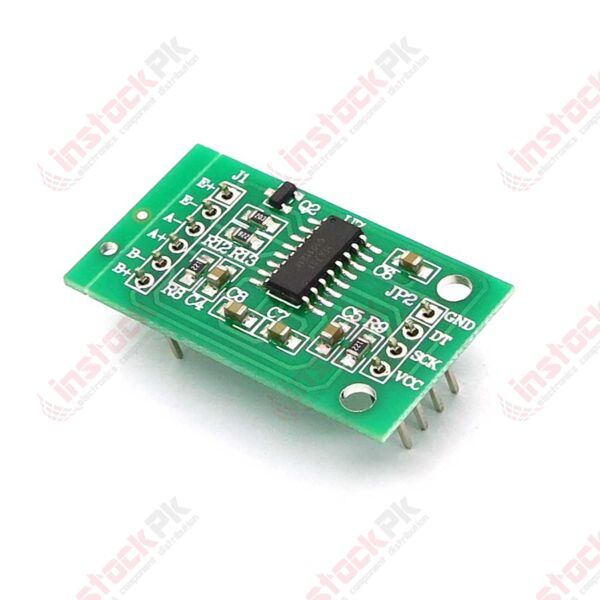

Arduino Hx711 Digital Scale Module

HX711 is an electronic scale module, whose working principle is to convert the measured changes in resistance value changes, through the conversion circuit into electrical output. The module communicates with the host computer through TTL 232.

Specifications:

1. Differential input voltage: ±40mV(Full-scale differential input voltage is ± 40mV)
2. Data accuracy: 24 bit (24 bit A / D converter chip.)
3. Refresh frequency: 80 Hz
4. Operating Voltage : 5V DC
5. Operating current : <10 mA
6. Size:38mm*21mm*10mm

Advantages:

Simple structure, easy to use, stable and reliable performance, high sensitivity and measurement speed and so on.

Applications:

Widely used in aerospace, mechanical, electrical, chemical, construction, medicine and many other fields, used to measure force, pressure, displacement, strain, torque, acceleration.

Related Documents:

1.  HX711 Datasheet
2.  HX711 Library
